This is Part 11 of a series on Designing, Building & Packaging A Scalable, Testable .NET Open Source Component.

In our last post, we implemented the InMemory storage engine that stores files in memory.

In this post, we shall write an engine that uses SQL Server storage.

Before we implement there are a number of things to think about:

  1. What versions of SQL Server are we going to support
  2. What expectations do we have, and what assumptions are we going to make about the setup, configuration and features of the SQL Server instance?

SQL Server Versions

In terms of versions we can look at this in two ways.

The first is the product version.

This table lists the most recent ones:

Version Name Release Year
SQL Server 2012 2012
SQL Server 2014 2014
SQL Server 2016 2016
SQL Server 2017 2017
SQL Server 2019 2019
SQL Server 2022 2022

Then there is the question of supported operating systems.

Up until SQL 2017, SQL Server was only available for Windows.

We want our component to be cross-platform so we can eliminate 2016 going backwards.

And since we are in 2025, it is reasonable to assume most folks are on SQL Server 2019 and SQL Server 2022, maybe a few on SQL Server 2017.

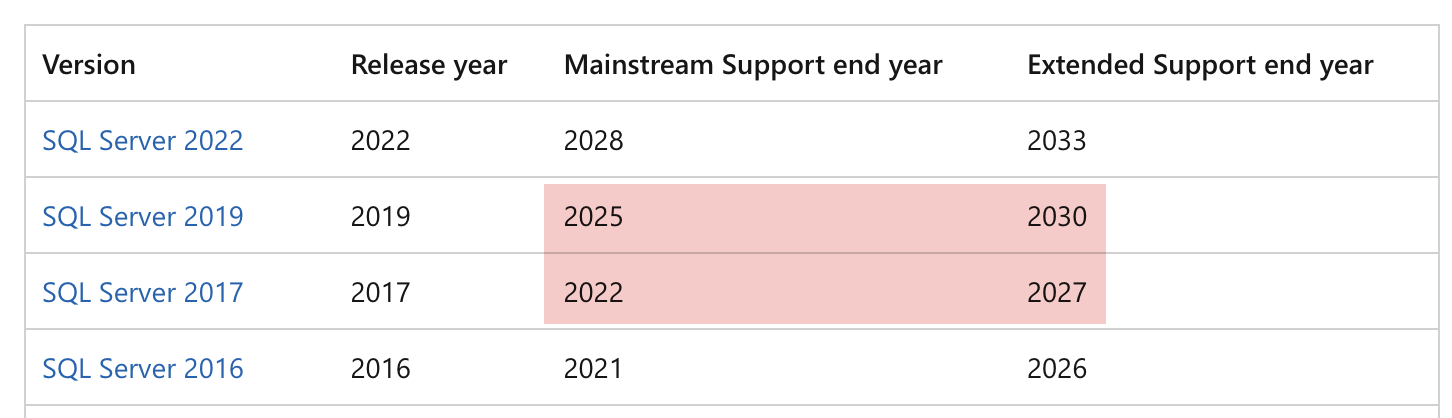

From the Microsoft SQL Server End Of Support options page, SQL Server 2017 is out of mainstream support, and SQL Server 2019 is going into that this year.

EndOfLife

Thus, we can say we will support the following, for Windows and Linux.

Version Name Release Year
SQL Server 2017 2017
SQL Server 2019 2019
SQL Server 2022 2022

SQL Server Configuration And Features

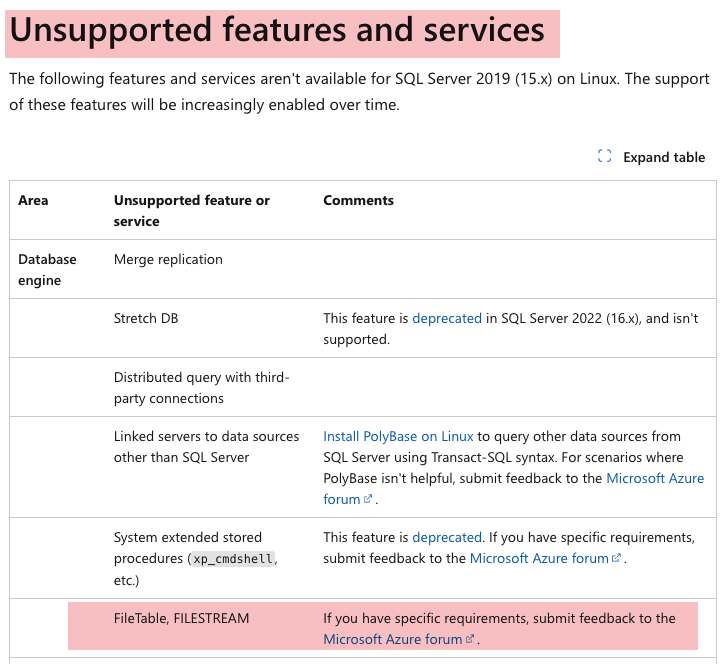

The problem of storing large binary data in a database is not a new one, and SQL Server has a novel solution to this - filestreams. This, however, is only supported on Windows.

NoSupport

This means we cannot use this feature, and have to store the data in a traditional table.

As a reminder, the IStorageEngine contract looks like this:

public interface IStorageEngine
{
    /// <summary>
    /// Persist the file
    /// </summary>
    /// <param name="metaData"></param>
    /// <param name="data"></param>
    /// <param name="cancellationToken"></param>
    /// <returns></returns>
    Task<FileMetadata> StoreFileAsync(FileMetadata metaData, Stream data,
        CancellationToken cancellationToken = default);

    /// <summary>
    /// Get the file metadata
    /// </summary>
    /// <param name="fileId"></param>
    /// <param name="cancellationToken"></param>
    /// <returns></returns>
    Task<FileMetadata> GetMetadataAsync(Guid fileId, CancellationToken cancellationToken = default);

    /// <summary>
    /// Get the file
    /// </summary>
    /// <param name="fileId"></param>
    /// <param name="cancellationToken"></param>
    /// <returns></returns>
    Task<Stream> GetFileAsync(Guid fileId, CancellationToken cancellationToken = default);

    /// <summary>
    /// Delete the file
    /// </summary>
    /// <param name="fileId"></param>
    /// <param name="cancellationToken"></param>
    /// <returns></returns>
    Task DeleteFileAsync(Guid fileId, CancellationToken cancellationToken = default);

    /// <summary>
    /// Check if the file exists
    /// </summary>
    /// <param name="fileId"></param>
    /// <param name="cancellationToken"></param>
    /// <returns></returns>
    Task<bool> FileExistsAsync(Guid fileId, CancellationToken cancellationToken = default);
}

In terms of interfacing with SQL Server we have two options:

  1. Entity Framework Core
  2. ADO.NET (using Dapper)

We can rule out Entity Framework Core because our use case is very straightforward, and there is little need to add the overhead of Entity Framework Core libraries to our package.

The first order of business is setting up the table in which we will store our data.

create table Files
(
    FileID               uniqueidentifier primary key not null,
    Name                 nvarchar(500)                not null,
    Extension            nvarchar(10)                 not null,
    DateUploaded         DATETIME2                    not null,
    OriginalSize         int                          not null,
    PersistedSize        int                          not null,
    CompressionAlgorithm tinyint                      not null,
    EncryptionAlgorithm  tinyint                      not null,
    Hash                 binary(32)               not null,
    Data                 varbinary(MAX)
)

Next we create an index to make querying metadata faster.

CREATE NONCLUSTERED INDEX IX_Files_Metadata
    ON Files (FileID)
    INCLUDE (
             Name,
             Extension,
             DateUploaded,
             OriginalSize,
             PersistedSize,
             CompressionAlgorithm,
             EncryptionAlgorithm,
             Hash
        );

The thinking here is that the component needs to initialize the database, probably at the application startup.

Thus we need to have the T-SQL code within the component ready for running.

We will also need to pass the component the connection string.

We start by installing Dapper to the project.

dotnet add package Dapper

Then we add the new Microsoft SqlServer provider

dotnet add package Microsoft.Data.SqlClient

Now we can start implementing the SqlServerStorageEngine.

namespace Rad.UploadFileManager;
/// <summary>
/// Sql Server Storage Engine
/// </summary>
public sealed class SqlServerStorageEngine : IStorageEngine
{
    private readonly string _connectionString;

    /// <summary>
    /// Constructor, taking the connection string
    /// </summary>
    /// <param name="connectionString"></param>
    public SqlServerStorageEngine(string connectionString)
    {
        _connectionString = connectionString;
    }
}

We start with the FileExistsAsync method:

/// <inheritdoc />
public async Task<bool> FileExistsAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    // Query to check for file existence
    const string sql = "SELECT 1 FROM Files where FileId = @FileId";
    // Create and initialize command
    var command = new CommandDefinition(sql, new { FileId = fileId }, cancellationToken: cancellationToken);
    await using (var cn = new SqlConnection(_connectionString))
    {
        return await cn.QuerySingleOrDefaultAsync<int?>(command) != null;
    }
}

Next, DeleteFileAsync

/// <inheritdoc />
public async Task DeleteFileAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    // Query to delete file
    const string sql = "DELETE FROM Files where FileId = @FileId";
    // Create and initialize command
    var command = new CommandDefinition(sql, new { FileId = fileId }, cancellationToken: cancellationToken);
    await using (var cn = new SqlConnection(_connectionString))
    {
        await cn.ExecuteAsync(command);
    }
}

Next, GetFileAsync

/// <inheritdoc />
public async Task<Stream> GetFileAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    // Query to fetch file
    const string sql = "SELECT Data FROM Files where FileId = @FileId";
    // Create and initialize command
    var command = new CommandDefinition(sql, new { FileId = fileId }, cancellationToken: cancellationToken);
    await using (var cn = new SqlConnection(_connectionString))
    {
        var result = await cn.QuerySingleAsync<byte[]>(command);
        return new MemoryStream(result);
    }
}

Next, GetMetadataAsync

/// <inheritdoc />
public async Task<FileMetadata> GetMetadataAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    // Query to fetch file metadata
    const string sql =
        "SELECT FileID, Name, Extension, DateUploaded, OriginalSize, PersistedSize, CompressionAlgorithm, EncryptionAlgorithm, Hash FROM Files where FileId = @FileId";
    // Create and initialize command
    var command = new CommandDefinition(sql, new { FileId = fileId }, cancellationToken: cancellationToken);
    await using (var cn = new SqlConnection(_connectionString))
    {
        return await cn.QuerySingleAsync<FileMetadata>(command);
    }
}

Finally, StoreFileAsync

/// <inheritdoc />
public async Task<FileMetadata> StoreFileAsync(FileMetadata metaData, Stream data,
    CancellationToken cancellationToken = default)
{
    // Query to fetch file metadata
    const string sql = """
                       INSERT INTO Files (
                                  FileID, Name, Extension, DateUploaded,
                                  OriginalSize, PersistedSize, CompressionAlgorithm,
                                  EncryptionAlgorithm, Hash, Data
                              ) VALUES (
                                  @FileID, @Name, @Extension, @DateUploaded,
                                  @OriginalSize, @PersistedSize, @CompressionAlgorithm,
                                  @EncryptionAlgorithm, @Hash, @Data
                              )
                       """;
    // Create and initialize command
    var param = new DynamicParameters();
    param.Add("FileID", metaData.FileId, DbType.Guid);
    param.Add("Name", metaData.Name, DbType.String, size: 500);
    param.Add("Extension", metaData.Extension, DbType.String, size: 10);
    param.Add("DateUploaded", metaData.DateUploaded, DbType.DateTime2);
    param.Add("OriginalSize", metaData.OriginalSize, DbType.Int32);
    param.Add("PersistedSize", metaData.PersistedSize, DbType.Int32);
    param.Add("CompressionAlgorithm", metaData.CompressionAlgorithm, DbType.Byte);
    param.Add("EncryptionAlgorithm", metaData.EncryptionAlgorithm, DbType.Byte);
    param.Add("Hash", metaData.Hash, dbType: DbType.Binary, size: 32);
    param.Add("Data", data, DbType.Binary, size: -1);
    var command = new CommandDefinition(sql, param, cancellationToken: cancellationToken);
    await using (var cn = new SqlConnection(_connectionString))
    {
        await cn.ExecuteAsync(command);
    }

    return metaData;
}

A couple of comments:

  1. I am passing the CancellatonToken to the methods, via the Dapper CommandDefinition object.
  2. What happens if there is an error on the database side? I allow the SqlException to bubble up and he handled by the client.

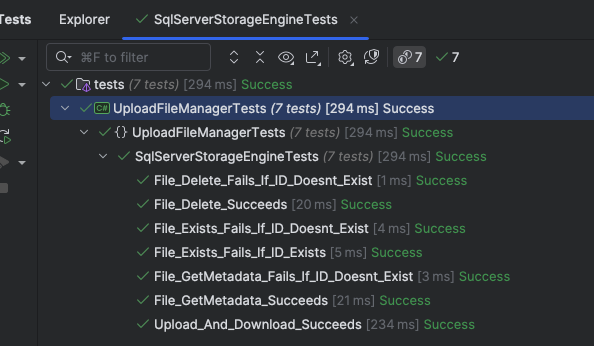

Finally, tests for the SqlServerStorageEngine.

public class SqlServerStorageEngineTests
{
    private readonly UploadFileManagerBehaviour _managerBehaviour;

    public SqlServerStorageEngineTests()
    {
        // Create a file compressor
        var compressor = new GZipCompressor();
        //
        // Create an encryptor
        //

        // Create Aes object
        var aes = Aes.Create();
        // Create the encryptor
        var encryptor = new AesFileEncryptor(aes.Key, aes.IV);

        // Create the storage engine
        var storageEngine =
            new SqlServerStorageEngine("data source=localhost;uid=sa;pwd=YourStrongPassword123;Database=FileStore;TrustServerCertificate=True;");

        // Create the time provider
        var timeProvider = new FakeTimeProvider();
        timeProvider.SetUtcNow(new DateTimeOffset(2025, 1, 1, 0, 0, 0, TimeSpan.Zero));

        // Create the file manager
        _managerBehaviour = new UploadFileManagerBehaviour(storageEngine, encryptor, compressor, timeProvider);
    }

    private static MemoryStream GetFile()
    {
        var faker = new Faker();
        var dataToStore = faker.Lorem.Sentences(20);
        var dataToStoreStream = new MemoryStream(Encoding.UTF8.GetBytes(dataToStore));
        return dataToStoreStream;
    }

    private async Task<FileMetadata> Upload(MemoryStream data)
    {
        return await _managerBehaviour.UploadFileAsync("Test.txt", ".txt", data, CancellationToken.None);
    }

    [Fact]
    public async Task Upload_And_Download_Succeeds()
    {
        // Get the data
        var data = GetFile();
        // Upload a file
        var uploadMetadata = await Upload(data);
        // Check the metadata
        uploadMetadata.Should().NotBeNull();
        uploadMetadata.FileId.Should().NotBeEmpty();
        // Download the file
        var download = await _managerBehaviour.DownloadFileAsync(uploadMetadata.FileId);
        download.GetBytes().Should().BeEquivalentTo(data.GetBytes());
    }

    [Fact]
    public async Task File_Exists_Fails_If_ID_Doesnt_Exist()
    {
        // Check if the file exists
        var result = await _managerBehaviour.FileExistsAsync(Guid.Empty);
        result.Should().BeFalse();
    }

    [Fact]
    public async Task File_Exists_Fails_If_ID_Exists()
    {
        // Get the data
        var data = GetFile();
        // Upload a file
        var uploadMetadata = await Upload(data);
        // Check if the file exists by ID
        var result = await _managerBehaviour.FileExistsAsync(uploadMetadata.FileId);
        result.Should().BeTrue();
    }

    [Fact]
    public async Task File_Delete_Succeeds()
    {
        // Get the data
        var data = GetFile();
        // Upload a file
        var uploadMetadata = await Upload(data);
        // Check if the file exists
        var result = await _managerBehaviour.FileExistsAsync(uploadMetadata.FileId);
        result.Should().BeTrue();
        // Delete the file
        await _managerBehaviour.DeleteFileAsync(uploadMetadata.FileId);
        // Check again if the file exists
        result = await _managerBehaviour.FileExistsAsync(uploadMetadata.FileId);
        result.Should().BeFalse();
    }

    [Fact]
    public async Task File_GetMetadata_Succeeds()
    {
        // Get the data
        var data = GetFile();
        // Upload a file
        var uploadMetadata = await Upload(data);
        // Get the metadata from the ID
        var storedMetadata = await _managerBehaviour.FetchMetadataAsync(uploadMetadata.FileId);
        storedMetadata.Should().NotBeNull();
        storedMetadata.Should().BeEquivalentTo(uploadMetadata);
    }

    [Fact]
    public async Task File_GetMetadata_Fails_If_ID_Doesnt_Exist()
    {
        // Fetch metadata for non-existent ID
        var ex = await Record.ExceptionAsync(() => _managerBehaviour.FetchMetadataAsync(Guid.Empty));
        ex.Should().BeOfType<FileNotFoundException>();
    }

    [Fact]
    public async Task File_Delete_Fails_If_ID_Doesnt_Exist()
    {
        // Delete a non-existent file id
        var ex = await Record.ExceptionAsync(() => _managerBehaviour.DeleteFileAsync(Guid.Empty));
        ex.Should().BeOfType<FileNotFoundException>();
    }
}

Our tests should pass successfully:

SqlServerStorageEngineTests

In a future post, we will look at how to configure the database for initial use, and possibly for upgrades.

We will also take into consideration that we should test against multiple versions of SQL Server.

In our next post we will implement the PostgreSQL storage engine.

TLDR

In this post, we implemented the SqlServerStorage engine to persist our files to a SQL Server Database.

The code is in my GitHub.

Happy hacking!
