This is Part 17 of a series on Designing, Building & Packaging A Scalable, Testable .NET Open Source Component.

In our last post, we made some optimizations around supporting large files, and ran into a problem with PostgreSQL.

This test was failing.

PostgreSQLAllFilesTest

This means there is a threshold past which PostgreSQL cannot process the storage of the byte array.

In this post, we will look at how to resolve this.

From our tests, we know that the threshold is somewhere between 512 MB and 1024 MB.

Let us introduce some intermediate test values to try and isolate the threshold, starting from 512 and adding 128 MB intervals.

We update the PostgreSQL tests as follows:

[Theory]
[InlineData(16)]
[InlineData(32)]
[InlineData(64)]
[InlineData(128)]
[InlineData(256)]
[InlineData(512)]
[InlineData(640)]
[InlineData(768)]
[InlineData(896)]
[InlineData(1_024)]
public async Task Large_File_Upload_And_Download_Succeeds(int size)
{
  //
  // Snip tests
  //
}

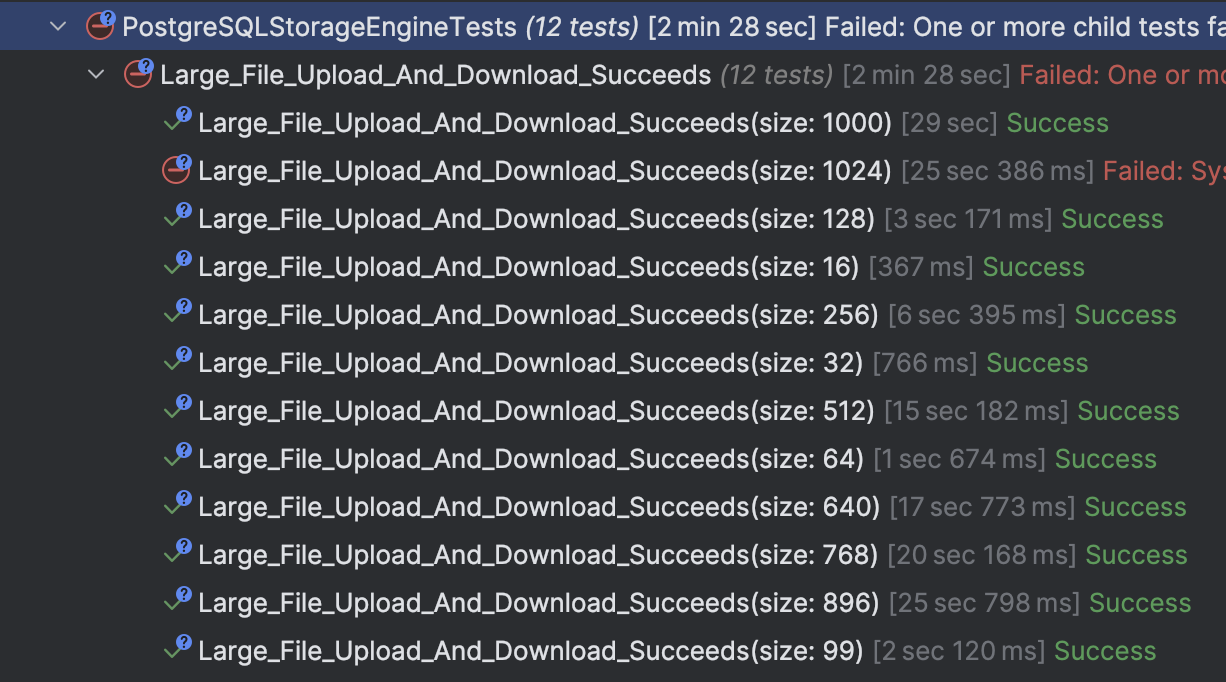

If we run these tests, we get the following results:

Threshold1

From this, the threshold is somewhere between 1,000 and 1,024.

We can narrow it down further for academic interest.

We can add these file sizes to the tests:

[InlineData(1_000)]
[InlineData(1_006)]
[InlineData(1_012)]
[InlineData(1_018)]
[InlineData(1_024)]
public async Task Large_File_Upload_And_Download_Succeeds(int size)
{
  //
  // Snip tests
  //
}

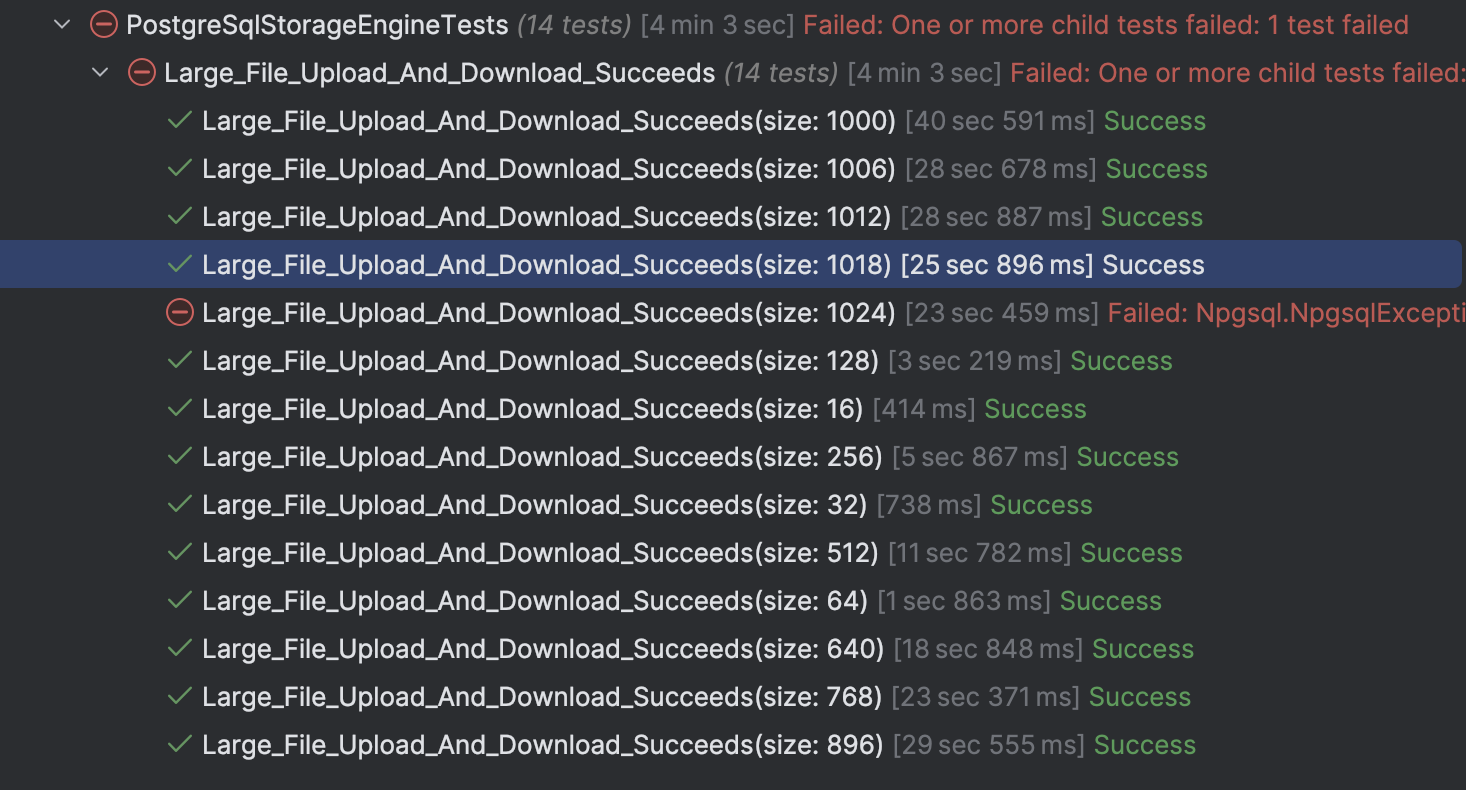

If we run these tests:

Threshold2

It seems the magic number is just under 1,024 MB

Let us then decide on the maximum safe size - 1,000 MB.

Anything larger than that is not safe for byte array storage.

So what do we do with files bugger than that? We have two options:

  1. Discard them (no support)
  2. Implement large object storage.

For parity with SQL Server, let us take the latter route.

We need to make a number of changes:

  1. Update our files table to support large object storage
  2. Update our PosgtreSqlStorageEngine to examine payloads and decide whether to use a byte array or large object storage for storage or retrieval.

Large Object Storage Table Support

For this functionality, PostgreSQL stores the data internally in a table called pg_largeobjects and returns an identifier, typed oid. We will add a column to our files table to support this.

I also considered making a separate table for this scenario, but for now, this approach is simpler.

It will now look like this:

create table files
(
    fileid               uuid                     not null
        primary key,
    name                 varchar(500)             not null,
    extension            varchar(10)              not null,
    dateuploaded         timestamp with time zone not null,
    originalsize         integer                  not null,
    persistedsize        integer                  not null,
    compressionalgorithm smallint                 not null,
    encryptionalgorithm  smallint                 not null,
    hash                 bytea                    not null,
    data                 bytea                    not null,
    loid                 oid
);

PostgreSqlStorageEngine Support

The first thing to do is to define a constant to determine the threshold for large objects.

 public const long PostgreSQLLargeObjectThreshold = 1_000 * 1_024 * 1_024;

Next we update our StoreFileAsync and split it into two branches - one for normal files and one for large files.

/// <inheritdoc />
public async Task<FileMetadata> StoreFileAsync(FileMetadata metaData, Stream data,
    CancellationToken cancellationToken = default)
{
    // Check the stream size
    if (data.Length > Constants.PostgreSQLLargeObjectThreshold)
    {
        // This branch is for streams LARGER than the threshold
        await using (var cn = new NpgsqlConnection(_connectionString))
        {
            await cn.OpenAsync(cancellationToken);
            var trans = await cn.BeginTransactionAsync(cancellationToken);
#pragma warning disable CS0618 // Type or member is obsolete
            var loManager = new NpgsqlLargeObjectManager(cn);
#pragma warning restore CS0618 // Type or member is obsolete

            // Create a new large object OID
            var oid = loManager.Create();

            // Open the LOB stream for writing
            await using (var loStream = await loManager.OpenReadWriteAsync(oid, cancellationToken))
            {
                // Copy your data stream into the large object stream
                data.Position = 0;
                var buffer = new byte[Constants.DefaultBufferSize];
                int bytesRead;

                while ((bytesRead = await data.ReadAsync(buffer, 0, buffer.Length, cancellationToken)) > 0)
                {
                    await loStream.WriteAsync(buffer.AsMemory(0, bytesRead), cancellationToken);
                }

                await loStream.FlushAsync(cancellationToken);
            }

            // Query to insert file metadata
            const string sql = """
                               INSERT INTO Files (
                                          FileID, Name, Extension, DateUploaded,
                                          OriginalSize, PersistedSize, CompressionAlgorithm,
                                          EncryptionAlgorithm, Hash, Data, Loid
                                      ) VALUES (
                                          @FileID, @Name, @Extension, @DateUploaded,
                                          @OriginalSize, @PersistedSize, @CompressionAlgorithm,
                                          @EncryptionAlgorithm, @Hash, @Data, @Loid
                                      )
                               """;

            var cmd = new NpgsqlCommand(sql, cn, trans);
            cmd.CommandTimeout = (int)TimeSpan.FromMinutes(TimeoutInMinutes).TotalSeconds;

            // Add normal parameters
            cmd.Parameters.AddWithValue("@FileId", NpgsqlDbType.Uuid, metaData.FileId);
            cmd.Parameters.AddWithValue("@Name", NpgsqlDbType.Varchar, metaData.Name);
            cmd.Parameters.AddWithValue("@Extension", NpgsqlDbType.Varchar, metaData.Extension);
            cmd.Parameters.AddWithValue("@DateUploaded", NpgsqlDbType.TimestampTz, metaData.DateUploaded);
            cmd.Parameters.AddWithValue("@OriginalSize", NpgsqlDbType.Integer, metaData.OriginalSize);
            cmd.Parameters.AddWithValue("@PersistedSize", NpgsqlDbType.Integer, metaData.PersistedSize);
            cmd.Parameters.AddWithValue("@CompressionAlgorithm", NpgsqlDbType.Smallint,
                (byte)metaData.CompressionAlgorithm);
            cmd.Parameters.AddWithValue("@EncryptionAlgorithm", NpgsqlDbType.Smallint,
                (byte)metaData.EncryptionAlgorithm);
            cmd.Parameters.AddWithValue("@Hash", NpgsqlDbType.Bytea, metaData.Hash);
            cmd.Parameters.AddWithValue("@Data", NpgsqlDbType.Bytea,
                new MemoryStream(Constants.PostgreSQLLargeObjectMaker));
            cmd.Parameters.AddWithValue("@Loid", NpgsqlDbType.Oid, oid);

            await cmd.ExecuteNonQueryAsync(cancellationToken);

            await trans.CommitAsync(cancellationToken);
        }
    }
    else
    {
        // This branch is for streams equal to or less than the threshold

        // Query to insert file metadata
        const string sql = """
                           INSERT INTO Files (
                                      FileID, Name, Extension, DateUploaded,
                                      OriginalSize, PersistedSize, CompressionAlgorithm,
                                      EncryptionAlgorithm, Hash, Data
                                  ) VALUES (
                                      @FileID, @Name, @Extension, @DateUploaded,
                                      @OriginalSize, @PersistedSize, @CompressionAlgorithm,
                                      @EncryptionAlgorithm, @Hash, @Data
                                  )
                           """;
        await using var cn = new NpgsqlConnection(_connectionString);
        await cn.OpenAsync(cancellationToken);

        var cmd = new NpgsqlCommand(sql, cn);
        cmd.CommandTimeout = (int)TimeSpan.FromMinutes(TimeoutInMinutes).TotalSeconds;

        // Add normal parameters
        cmd.Parameters.AddWithValue("@FileId", NpgsqlDbType.Uuid, metaData.FileId);
        cmd.Parameters.AddWithValue("@Name", NpgsqlDbType.Varchar, metaData.Name);
        cmd.Parameters.AddWithValue("@Extension", NpgsqlDbType.Varchar, metaData.Extension);
        cmd.Parameters.AddWithValue("@DateUploaded", NpgsqlDbType.TimestampTz, metaData.DateUploaded);
        cmd.Parameters.AddWithValue("@OriginalSize", NpgsqlDbType.Integer, metaData.OriginalSize);
        cmd.Parameters.AddWithValue("@PersistedSize", NpgsqlDbType.Integer, metaData.PersistedSize);
        cmd.Parameters.AddWithValue("@CompressionAlgorithm", NpgsqlDbType.Smallint,
            (byte)metaData.CompressionAlgorithm);
        cmd.Parameters.AddWithValue("@EncryptionAlgorithm", NpgsqlDbType.Smallint,
            (byte)metaData.EncryptionAlgorithm);
        cmd.Parameters.AddWithValue("@Hash", NpgsqlDbType.Bytea, metaData.Hash);

        // Stream parameter
        data.Position = 0;
        var dataParam = new NpgsqlParameter("@Data", NpgsqlDbType.Bytea)
        {
            Value = data,
            Size = -1
        };
        cmd.Parameters.Add(dataParam);

        await cmd.ExecuteNonQueryAsync(cancellationToken);
    }

    return metaData;
}

A couple of things to note about this code:

  1. If the data size is greater than the threshold, we use the NpgsqlLargeObjectManager object to create and store the data in the large object storage.
  2. The ID we get back, we persist in the files table.
  3. In the data column, we persist a magic value - the byre array [0, 0, 0]
  4. Manipulating the large objects storage requires the use of a transaction.
  5. The NpgsqlLargeObjectManager has been marked obsolete, and there doesn’t seem to be a replacement in place. However, it still works.

Next, the logic to retrieve files,

/// <inheritdoc />
public async Task<Stream> GetFileAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    // Get local metadata
    var sql = "Select loid from Files where FileId = @FileId";
    uint? oid = null;
    await using (var cn = new NpgsqlConnection(_connectionString))
    {
        oid = await cn.QuerySingleOrDefaultAsync<uint?>(sql, new { FileId = fileId });
    }

    if (oid.HasValue)
    {
        await using (var cn = new NpgsqlConnection(_connectionString))
        {
            await cn.OpenAsync(cancellationToken);
            await using (var trans = await cn.BeginTransactionAsync(cancellationToken))
            {
                // Fetch and return the lob
#pragma warning disable CS0618 // Type or member is obsolete
                var loManager = new NpgsqlLargeObjectManager(cn);
#pragma warning restore CS0618 // Type or member is obsolete
                uint id = oid.Value;
                await using (var stream = await loManager.OpenReadAsync(id, cancellationToken))
                {
                    var memoryStream = new MemoryStream();
                    var buffer = new byte[Constants.DefaultBufferSize];

                    int bytesRead;

                    while ((bytesRead = await stream.ReadAsync(buffer, cancellationToken)) > 0)
                    {
                        await memoryStream.WriteAsync(buffer.AsMemory(0, bytesRead), cancellationToken);
                    }

                    // Close the large object stream
                    stream.Close();

                    await trans.CommitAsync(cancellationToken);

                    // Reset the position
                    memoryStream.Position = 0;

                    return memoryStream;
                }
            }
        }
    }

    // If we are here, there was no OID. Query to fetch file
    sql = "SELECT Data FROM Files where FileId = @FileId";
    await using (var cn = new NpgsqlConnection(_connectionString))
    {
        await using (var cmd = new NpgsqlCommand(sql, cn))
        {
            await cn.OpenAsync(cancellationToken);

            // Increase the timout in case of large files
            cmd.CommandTimeout = (int)TimeSpan.FromMinutes(TimeoutInMinutes).TotalSeconds;
            cmd.Parameters.AddWithValue("FileID", fileId);

            await using (var reader =
                         await cmd.ExecuteReaderAsync(CommandBehavior.SequentialAccess, cancellationToken))
            {
                if (await reader.ReadAsync(cancellationToken))
                {
                    var memoryStream = new MemoryStream();
                    await using (var dataStream =
                                 await reader.GetStreamAsync(0, cancellationToken).ConfigureAwait(false))
                        await dataStream.CopyToAsync(memoryStream, Constants.DefaultBufferSize,
                            cancellationToken);

                    memoryStream.Position = 0;

                    return memoryStream;
                }
            }
        }
    }

    // If we are here, could not get the file data
    throw new FileNotFoundException($"The file '{fileId}' was not found");
}

A couple of things about this code:

  1. I start by checking for a large object ID for the corresponding FileID. If there is, I use the NpgsqlLargeObjectManager to retrieve the data from storage.
  2. If there isn’t, I retrieve the data from the files table.
  3. When using the NpgsqlLargeObjectManager, you must retrieve the data in a transaction and close the stream when you are done. The stream returned is a NpgsqlLargeObjectStream, which we use to write to a MemoryStream.

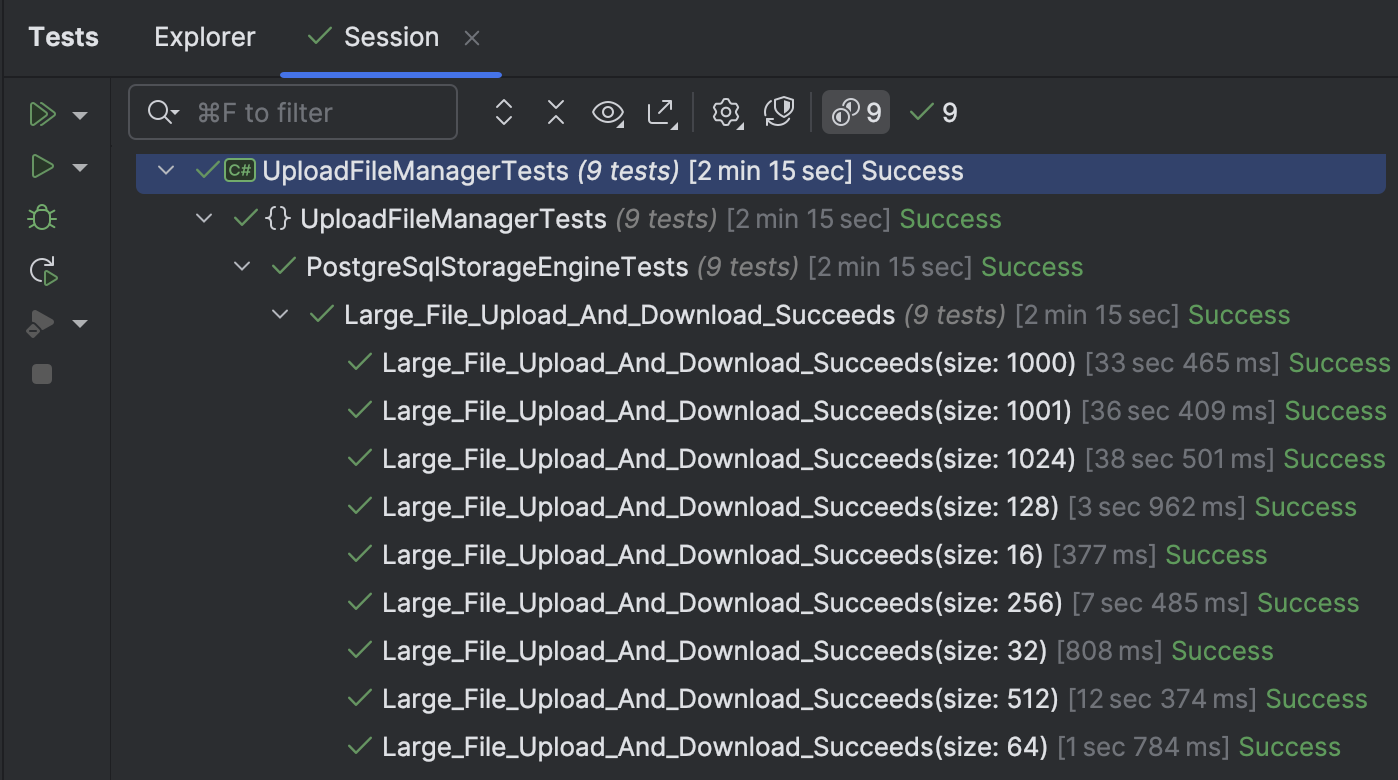

If we run our tests now, they should all pass.

LargeFileTests

Thus, our PostgreSqlStorageEngine now supports arbitrarily large files.

In our next post, we will implement Azure Blob storage.

TLDR

In this post, we implemented large object storage to allow PostgreSQL to store arbitrarily large files.

The code is in my GitHub.

Happy hacking!
