This is Part 19 of a series on Designing, Building & Packaging A Scalable, Testable .NET Open Source Component.

In our last post, we implemented a storage engine for Azure Blob Storage.

In this post we will look at how to test locally.

Testing locally here means how do we test without connecting to the actual Azure infrastructure. As part of integration testing we will ultimately need to do this, but given that moving data in and out of Azure costs actually money, it may not be desirable to do this frequently.

Luckily, Microsoft has availed a docker container that encapsulates Azure functionality that we can use for this purpose.

The first order of business is to download the container.

docker pull mcr.microsoft.com/azure-storage/azurite

Next we will need to so some configuration, specifically to allow Azurite to run with https.

For this we will require two tools:

  1. mkcert
  2. nss Network security services.

You can install this using your preferred package manager - homebrew on OSX and Chocolatey or Winget on Windows

brew install nss
brew install mkcert

With these tools installed, we can now start on the configuration.

Create a folder where you will store two files we are about to generate - the certificates.

mkdir Azurite

Change to this folder.

cd Azurite

From this folder, run the following command to create locally-trusted development TLS certificates by installing a local Certificate Authority (CA) in your system and browser trust stores.

mkcert -install

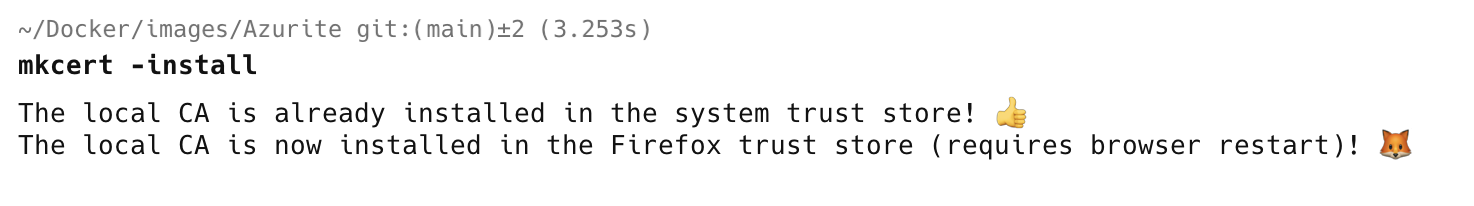

You should see the following output:

mkcertInstall

Next is to generate a certificate file and a key file

mkcert 127.0.0.1

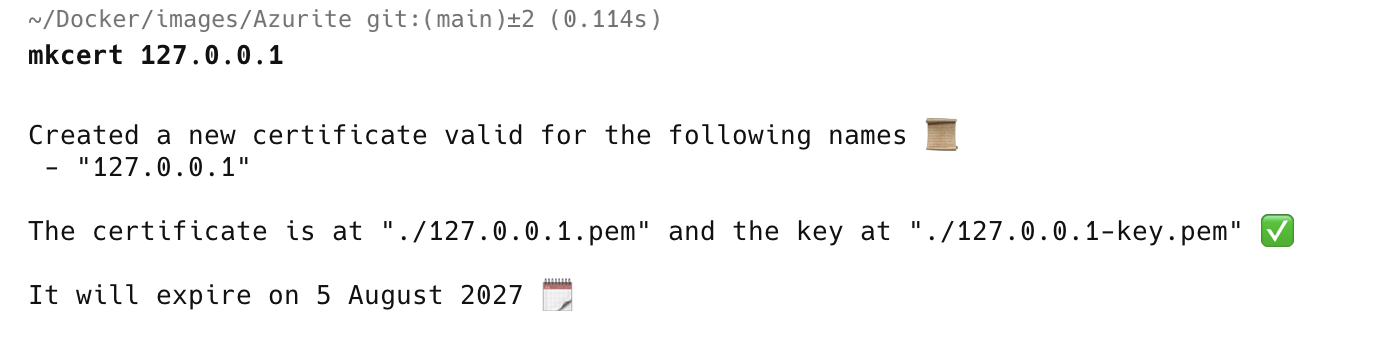

You should see the following output:

mkcert

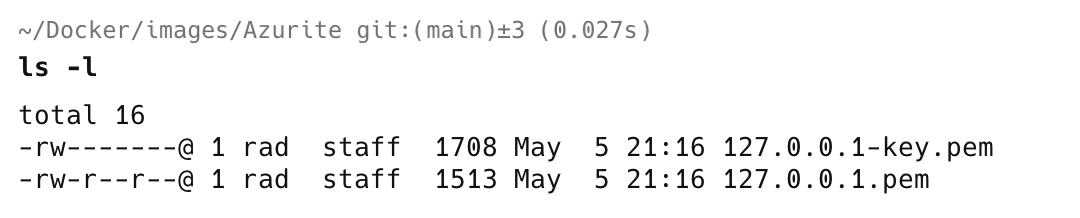

If you list the files in that directory you should see the following:

certificates

Now, from this directory, we start our container with the following command:

docker run -p 10000:10000 -v $(pwd):/workspace  mcr.microsoft.com/azure-storage/azurite azurite --blobHost 0.0.0.0  --cert /workspace/127.0.0.1.pem --key /workspace/127.0.0.1-key.pem

This does a couple of things:

  1. -p 10000:10000 Maps port 10000 on the host to the container
  2. -v $(pwd):/workspace Maps the volume /workspace in the container to the current location
  3. --blobHost 0.0.0.0 allows access to the service by the host (required by docker)

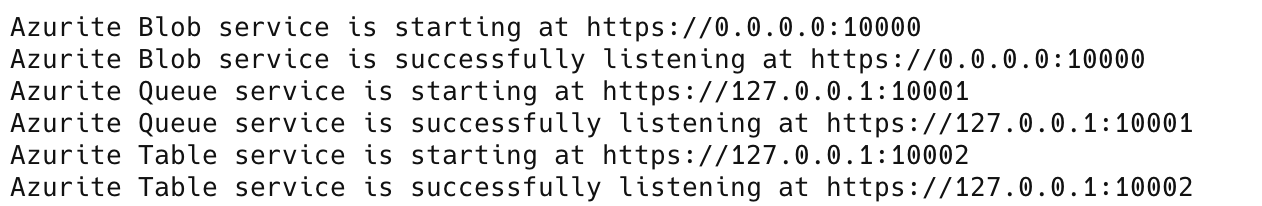

You should see the following on successful start.

azureServices

Our next order of business to update our AzureSettings class.

We need to provide an AccountKey for authentication and authorization, as well as an AzureLocation, so we can point our component to the emulator.

public class AzureSettings
{
    [Required] public string AccountName { get; set; } = null!;
    [Required] public string AccountKey { get; set; } = null!;
    [Required] public string AzureLocation { get; set; } = null!;
    [Required] public string DataContainerName { get; set; } = null!;
    [Required] public string MetadataContainerName { get; set; } = null!;
}

Next we need to update our AzureBlobStorageEngine constructor to factor in our new settings:

public AzureBlobStorageEngine(int timeoutInMinutes, string accountName, string accountKey, string azureLocation,
        string dataContainerName, string metadataContainerName)
    {
        TimeoutInMinutes = timeoutInMinutes;

        // Create a service client
        var blobServiceClient = new BlobServiceClient(
            new Uri($"{azureLocation}/{accountName}/"),
            new StorageSharedKeyCredential(accountName, accountKey));

        // Get our container clients
        _dataContainerClient = blobServiceClient.GetBlobContainerClient(dataContainerName);
        _metadataContainerClient = blobServiceClient.GetBlobContainerClient(metadataContainerName);

        // Ensure they exist
        if (!_dataContainerClient.Exists())
            _dataContainerClient.CreateIfNotExists();
        if (!_metadataContainerClient.Exists())
            _metadataContainerClient.CreateIfNotExists();
    }

Finally we implement our tests:

[Trait("Type", "Integration")]
public class AzureBlobStorageEngineTests
{
    private readonly UploadFileManager _manager;

    public AzureBlobStorageEngineTests()
    {
        // Create a file compressor
        var compressor = new GZipCompressor();
        //
        // Create an encryptor
        //

        // Create Aes object
        var aes = Aes.Create();
        // Create the encryptor
        var encryptor = new AesFileEncryptor(aes.Key, aes.IV);

        // Create the storage engine
        var storageEngine = new AzureBlobStorageEngine(0, "devstoreaccount1",
            "Eby8vdM02xNOcqFlqUwJPLlmEtlCDXJ1OUzFT50uSRZ6IFsuFq2UVErCz4I6tq/K1SZFPTOtr/KBHBeksoGMGw==",
            "https://127.0.0.1:10000", "data", "metadata");

        // Create the time provider
        var timeProvider = new FakeTimeProvider();
        timeProvider.SetUtcNow(new DateTimeOffset(2025, 1, 1, 0, 0, 0, TimeSpan.Zero));

        // Create the file manager
        _manager = new UploadFileManager(storageEngine, encryptor, compressor, timeProvider);
    }

    private static MemoryStream GetFile()
    {
        var faker = new Faker();
        var dataToStore = faker.Lorem.Sentences(20);
        var dataToStoreStream = new MemoryStream(Encoding.UTF8.GetBytes(dataToStore));
        return dataToStoreStream;
    }

    private async Task<FileMetadata> Upload(MemoryStream data)
    {
        return await _manager.UploadFileAsync("Test.txt", ".txt", data, CancellationToken.None);
    }

    [Fact]
    public async Task Upload_And_Download_Succeeds()
    {
        // Get the data
        var data = GetFile();
        // Upload a file
        var uploadMetadata = await Upload(data);
        // Check the metadata
        uploadMetadata.Should().NotBeNull();
        uploadMetadata.FileId.Should().NotBeEmpty();
        // Download the file
        var download = await _manager.DownloadFileAsync(uploadMetadata.FileId);
        download.GetBytes().Should().BeEquivalentTo(data.GetBytes());
    }

    [Fact]
    public async Task File_Exists_Fails_If_ID_Doesnt_Exist()
    {
        // Check if the file exists
        var result = await _manager.FileExistsAsync(Guid.Empty);
        result.Should().BeFalse();
    }

    [Fact]
    public async Task File_Exists_Fails_If_ID_Exists()
    {
        // Get the data
        var data = GetFile();
        // Upload a file
        var uploadMetadata = await Upload(data);
        // Check if the file exists by ID
        var result = await _manager.FileExistsAsync(uploadMetadata.FileId);
        result.Should().BeTrue();
    }

    [Fact]
    public async Task File_Delete_Succeeds()
    {
        // Get the data
        var data = GetFile();
        // Upload a file
        var uploadMetadata = await Upload(data);
        // Check if the file exists
        var result = await _manager.FileExistsAsync(uploadMetadata.FileId);
        result.Should().BeTrue();
        // Delete the file
        await _manager.DeleteFileAsync(uploadMetadata.FileId);
        // Check again if the file exists
        result = await _manager.FileExistsAsync(uploadMetadata.FileId);
        result.Should().BeFalse();
    }

    [Fact]
    public async Task File_GetMetadata_Succeeds()
    {
        // Get the data
        var data = GetFile();
        // Upload a file
        var uploadMetadata = await Upload(data);
        // Get the metadata from the ID
        var storedMetadata = await _manager.FetchMetadataAsync(uploadMetadata.FileId);
        storedMetadata.Should().NotBeNull();
        storedMetadata.Should().BeEquivalentTo(uploadMetadata);
    }

    [Fact]
    public async Task File_GetMetadata_Fails_If_ID_Doesnt_Exist()
    {
        // Fetch metadata for non-existent ID
        var ex = await Record.ExceptionAsync(() => _manager.FetchMetadataAsync(Guid.Empty));
        ex.Should().BeOfType<FileNotFoundException>();
    }

    [Fact]
    public async Task File_Delete_Fails_If_ID_Doesnt_Exist()
    {
        // Delete a non-existent file id
        var ex = await Record.ExceptionAsync(() => _manager.DeleteFileAsync(Guid.Empty));
        ex.Should().BeOfType<FileNotFoundException>();
    }
}

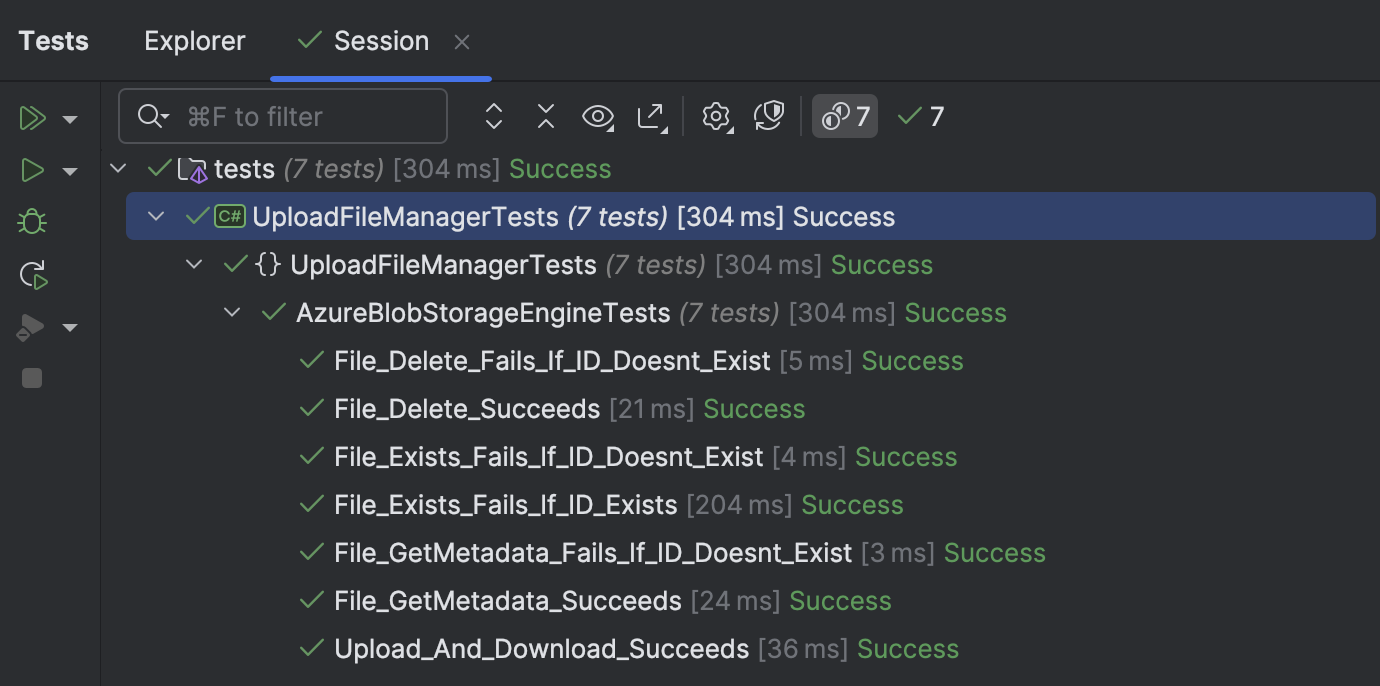

If we run our test, they should pass:

AzureBlobTests

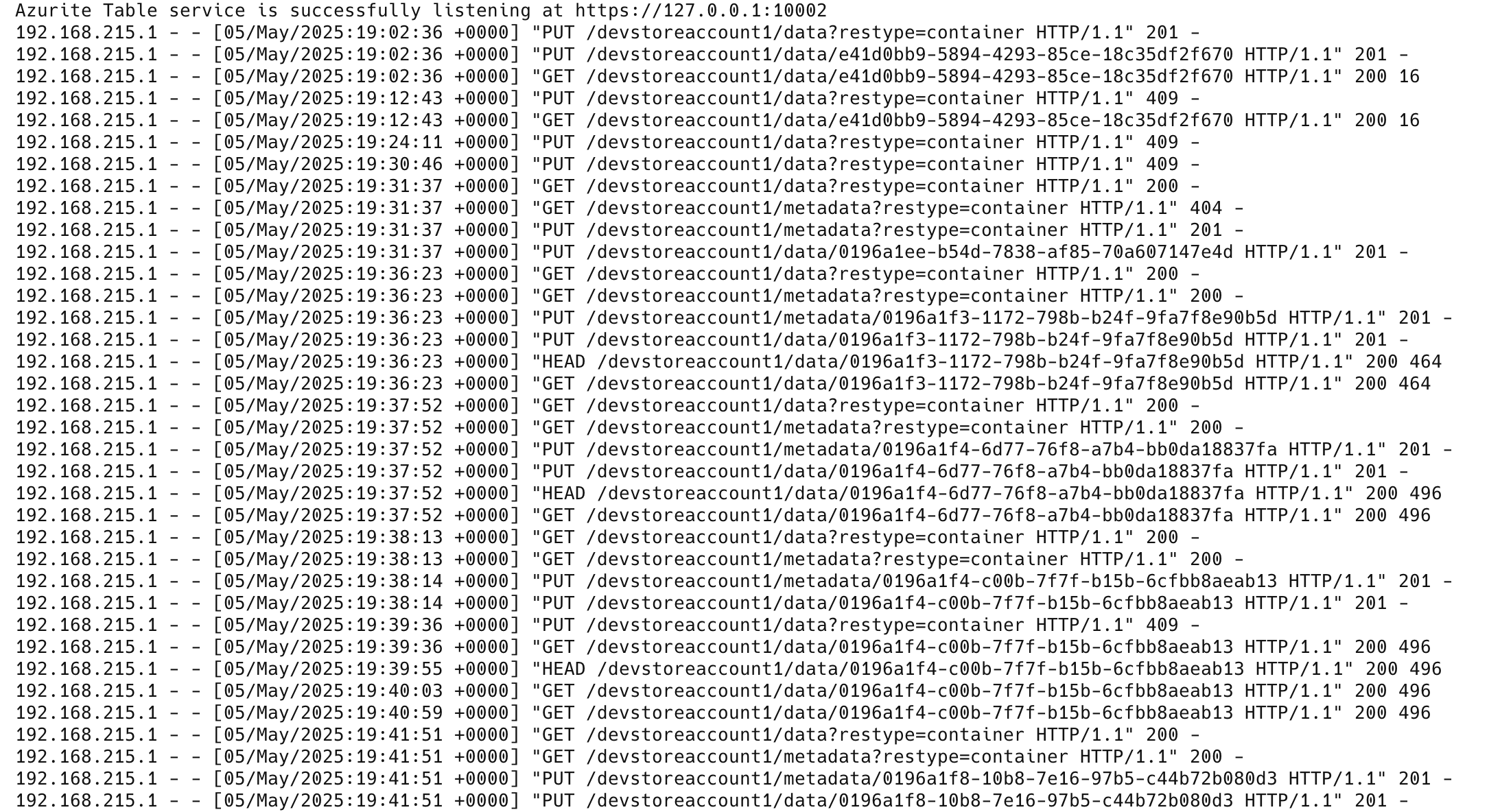

And if you look at the continer logs, you should see requests and responses being written to the console.

AzuriteTraffic

Now we can effectively test our component locally.

TLDR

In this post we learned how to setup and configure Azurite for local testing of Azure.

The code is in my GitHub.

Happy hacking!
