This is Part 20 of a series on Designing, Building & Packaging A Scalable, Testable .NET Open Source Component.

In the last post in the series, we looked at how to test Azure Blob storage applications locally.

This post will implement storage on Amazon S3 - the AmazonS3StorageEngine.

The first step is to understand the Amazon product we will use for storage: Amazon Simple Storage Service, known as S3.

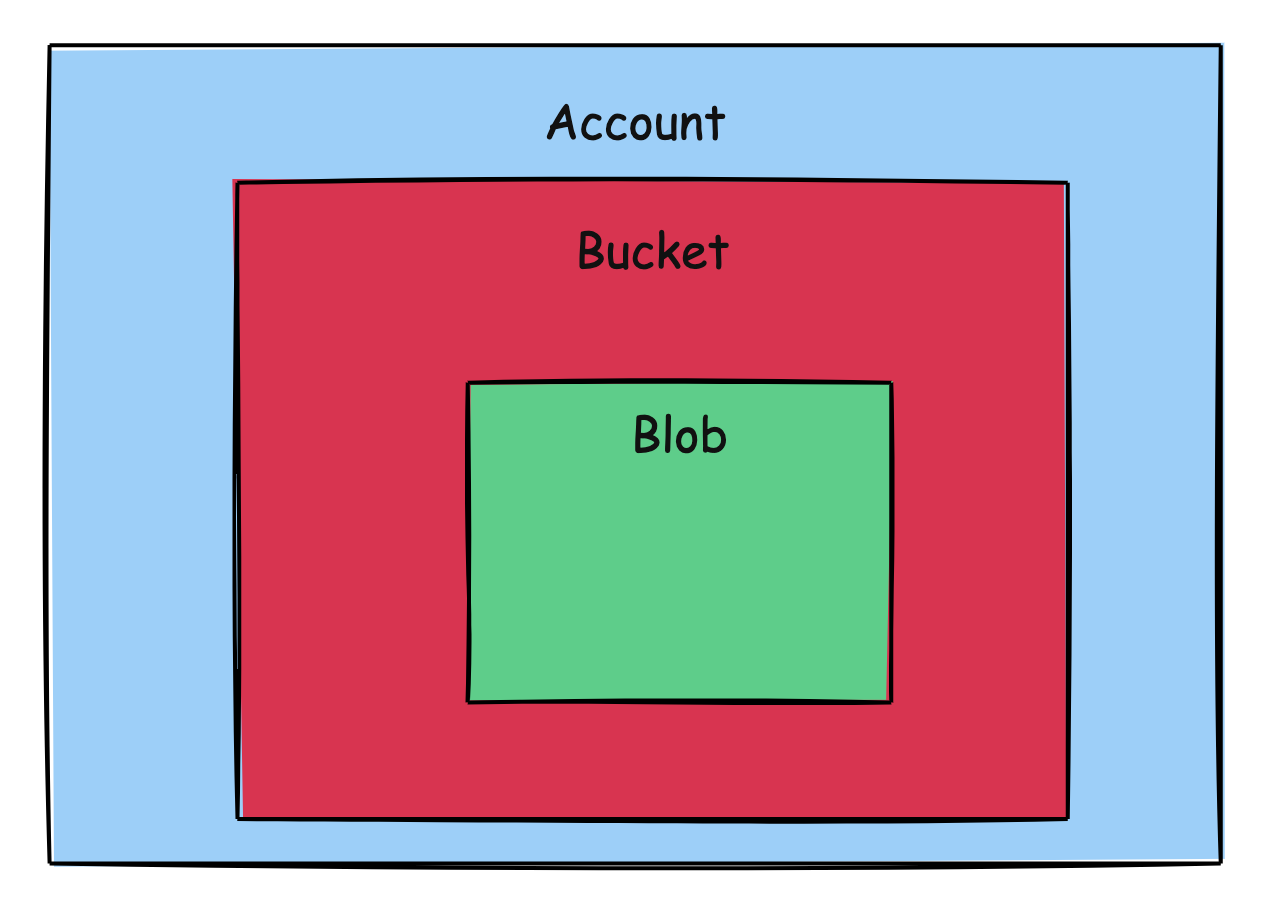

The main concepts we will deal with are:

  1. Account
  2. Bucket

Account

This is the top level. It is accessed and manipulated using the AmazonS3Client.

Bucket

This level is the equivalent of a directory.

An account can have more than one bucket. Objects are stored in the buckets.

This is accessed and manipulated using three objects:

  1. AmazonS3Client, which interfaces at a lower level,
  2. TransferUtility, a higher-level interface with convenience methods for dealing with uploads and downloads
  3. AmazonS3Util for bucket verifications

Like our AzureBlobStorageEngine, we will have two buckets - one to store the file data, and another to store the file metadata.

We will begin by implementing a class to store some preliminary settings (likely to change to factor in additional AWS concerns like authentication)

public class AmazonSettings
{
    [Required] public string AccountName { get; set; } = null!;
    [Required] public string DataContainerName { get; set; } = null!;
    [Required] public string MetadataContainerName { get; set; } = null!;
}

Next, we begin to implement the AmazonS3StrorageEngine.

public sealed class AmazonS3StorageEngine : IStorageEngine
{
    private readonly string _dataContainerName;
    private readonly string _metadataContainerName;
    private readonly TransferUtility _utility;
    private readonly AmazonS3Client _client;

    public AmazonS3StorageEngine(string username, string password, string amazonLocation, string dataContainerName,
        string metadataContainerName)
    {
      	// Configuration for the amazon s3 client
        var config = new AmazonS3Config
        {
            ServiceURL = amazonLocation,
            ForcePathStyle = true
        };

        _dataContainerName = dataContainerName;
        _metadataContainerName = metadataContainerName;
        _client = new AmazonS3Client(username, password, config);
        _utility = new TransferUtility(_client);
    }
}

We next need to implement an Initialization method that will create our buckets if they don’t already exist. This will be run once, perhaps at startup so that the AmazonS3StorageEngine will always find the buckets when it needs them.

public async Task InitializeAsync(CancellationToken cancellationToken = default)
{
    // Check if the metadata bucket exists
    if (!await AmazonS3Util.DoesS3BucketExistV2Async(_client, _metadataContainerName))
    {
        var request = new PutBucketRequest
        {
            BucketName = _metadataContainerName,
            UseClientRegion = true
        };

        await _client.PutBucketAsync(request, cancellationToken);
    }

    // Check if the data bucket exists
    if (!await AmazonS3Util.DoesS3BucketExistV2Async(_client, _dataContainerName))
    {
        var request = new PutBucketRequest
        {
            BucketName = _dataContainerName,
            UseClientRegion = true
        };

        await _client.PutBucketAsync(request, cancellationToken);
    }
}

We then go on to implement the various methods of the IStorageEngine interface.

First, a method that checks if a given FileID exists in a specified bucket:

private async Task<bool> FileExistsAsync(Guid fileId, string containerName,
    CancellationToken cancellationToken = default)
{
    try
    {
        await _client.GetObjectMetadataAsync(containerName, fileId.ToString(), cancellationToken);
        return true;
    }
    catch (AmazonS3Exception ex)
    {
        if (ex.StatusCode == HttpStatusCode.NotFound)
        {
            throw new FileNotFoundException($"File {fileId} not found");
        }

        return false;
    }
}

Next, StoreFileAsync:

/// <inheritdoc />
public async Task<FileMetadata> StoreFileAsync(FileMetadata metaData, Stream data,
    CancellationToken cancellationToken = default)
{
    // Upload the data and the metadata in parallel
    await Task.WhenAll(
        _utility.UploadAsync(new MemoryStream(Encoding.UTF8.GetBytes(JsonSerializer.Serialize(metaData))),
            _metadataContainerName, metaData.FileId.ToString(), cancellationToken),
        _utility.UploadAsync(data, _dataContainerName, metaData.FileId.ToString(), cancellationToken)
    );
    return metaData;
}

Next, GetMetadataAsync:

/// <inheritdoc />
public async Task<FileMetadata> GetMetadataAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    //Verify file exists
    if (!await FileExistsAsync(fileId, _metadataContainerName, cancellationToken))
        throw new FileNotFoundException($"File {fileId} not found");

    // Create a request
    var request = new GetObjectRequest
    {
        BucketName = _metadataContainerName,
        Key = fileId.ToString()
    };

    // Retrieve the data
    using var response = await _client.GetObjectAsync(request, cancellationToken);
    await using var responseStream = response.ResponseStream;
    var memoryStream = new MemoryStream();
    await responseStream.CopyToAsync(memoryStream, cancellationToken);

    // Reset position
    memoryStream.Position = 0;
    using var reader = new StreamReader(memoryStream);
    var content = await reader.ReadToEndAsync(cancellationToken);
    return JsonSerializer.Deserialize<FileMetadata>(content) ?? throw new FileNotFoundException();
}

Next, GetFileAsync:

/// <inheritdoc />
public async Task<Stream> GetFileAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    //Verify file exists
    if (!await FileExistsAsync(fileId, _dataContainerName, cancellationToken))
        throw new FileNotFoundException($"File {fileId} not found");

    // Create a request
    var request = new GetObjectRequest
    {
        BucketName = _dataContainerName,
        Key = fileId.ToString()
    };

    // Retrieve the data
    using var response = await _client.GetObjectAsync(request, cancellationToken);
    await using var responseStream = response.ResponseStream;
    var memoryStream = new MemoryStream();
    await responseStream.CopyToAsync(memoryStream, cancellationToken);
    // Reset position
    memoryStream.Position = 0;
    return memoryStream;
}

Next, DeleteFileAsync:

/// <inheritdoc />
public async Task<bool> FileExistsAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    return await FileExistsAsync(fileId, _dataContainerName, cancellationToken);
}

In our next post, we will look at how to test this locally.

Note, however, we have not yet tested against the actual Amazon storage, which will likely require some modifications to our configuration of the client, as well as authentication.

TLDR

In this post, we implemented a storage engine for Amazon S3, AmazonS3StorageEngine

The code is in my GitHub.

Happy hacking!
