This is Part 2 of a series on Discriminated Unions.

In our previous post in the series, we saw how we can start off with a design based on model inheritance that can quickly outrun the capabilities of inheritance.

In particular, we saw how evolution of the model from this base class:

public abstract class Card
{
  public required string Number { get; init; }
  public abstract string Type { get; }
  public required string CVV { get; init; }
  public required string CardHolderName { get; init; }
}

And these concrete classes:

public class VisaCard : Card
{
  public override string Type => "VISA";
}

And:

public class AmericanExpressCard : Card
{
  public override string Type => "American Express";
}

Quickly ran into problems where we were presented with payment types that do not fit this model:

  1. SafarCard - no CVV
  2. Mobile money - not a card at all.

On top of the complications of modeling the payment types, one of the biggest consequences is on the PaymentProcessor.

It currently looks like this:

public static class PaymentsProcessor
{
  public static void MakePayment(Card card, decimal Amount)
  {
    switch (card)
    {
      case VisaCard:
      	Console.WriteLine($"A payment of {Amount:#,0.00} was made by VISA card ending in XXXX-{card.Number[^4..]}");
      	break;
      case AmericanExpressCard:
      	Console.WriteLine($"A payment of {Amount:#,0.00} was made by American Express card ending in XXXX-{card.Number[^4..]}");
      	break;
    }
  }
}

The signature of the MakePayment method is as follows:

public static void MakePayment(Card card, decimal Amount)

Given that Card no longer fits our requirements, what do we do?

We could do it this way:

public static void MakePayment(Object paymentMethod, decimal Amount)

Here we refactor from Card to Object.

The problem with this approach is that it will be a nightmare to develop, test and maintain, because anything can be passed as this object, by accident or by design.

So how do we solve this?

What if there was a way to tell the method the following:

I am going to pass you something of a type PaymentMethod. This could be one of the following:

  1. A known credit card (Visa, American Express, Master Card)
  2. New credit cards (SafiriPay)
  3. Mobile Money

From this we can see the type is potentially one of three different types.

Within its logic, the PaymentProcessor will know how to handle each one.

We accomplish this as follows:

First, we redesigned our types and move away from abstract classes and use interfaces instead to specify contracts.

We start with the base level ICard:

public interface ICard
{
    public string Number { get; init; }
    public string Type { get; }
    public string CardHolderName { get; init; }
}

We next define the IKnownCard interface, that extends ICard:

public interface IKnownCard : ICard
{
    public string CVV { get; init; }
}

Next we implement our cards:

AmericanExpress:

public sealed class AmericanExpressCard : IKnownCard
{
    public required string Number { get; init; }
    public string Type => "American Express";
    public required string CardHolderName { get; init; }
    public required string CVV { get; init; }
}

Visa:

public sealed class VisaCard : IKnownCard
{
    public required string Number { get; init; }
    public string Type => "VISA";
    public required string CardHolderName { get; init; }
    public required string CVV { get; init; }
}

Safiri:

public sealed class SafiriCard : ICard
{
    public required string Number { get; init; }
    public string Type => "Safiri";
    public required string CardHolderName { get; init; }
}

Then a new type to support mobile money:

public sealed class MobileMoneyPayment
{
    public required string PhoneNumber { get; init; }
    public required string Name { get; init; }
}

Finally, we turn to our PaymentProcessor.

As outlined earlier, we could do it this way:

public static void MakePayment(Object paymentMethod, decimal Amount)

But this presents a lot more problems than solutions.

We also don’t want to provide overloads for all the payment types.

So how do we pass, what is essentially an optional type?

We add the library OneOf from Nuget.

dotnet add package OneOf

Then we write our PaymentProcessor like this:

public static class PaymentsProcessor
{
    public static void MakePayment(OneOf<AmericanExpressCard, VisaCard, SafiriCard, MobileMoneyPayment> payment,
        decimal Amount)
    {
        payment.Switch(
            amex =>
            {
                Console.WriteLine(
                    $"Processing payment for American Express Card {amex.Number[^4..]} of {Amount:#,0.00}");
            },
            visa => { Console.WriteLine($"Processing payment for VISA Card {visa.Number[^4..]} of {Amount:#,0.00}"); },
            safiri =>
            {
                Console.WriteLine($"Processing payment for Safiri Card {safiri.Number[^4..]} of {Amount:#,0.00}");
            },
            mobileMoney =>
            {
                Console.WriteLine(
                    $"Processing payment for Mobile money for number {mobileMoney.PhoneNumber} of {Amount:#,0.00}");
            }
        );
    }
}

A couple of things to point out:

  1. The MakePayment method takes as a parameter an object of type OneOf<AmericanExpressCard, VisaCard, SafiriCard, MobileMoneyPayment>, which specifies all the PaymentTypes we intend to handle.
  2. Within the MakePayment method, we switch over all the possible PaymentTypes
  3. We provide logic for each candidate of PaymentType specified in the type

The last part is key. If you fail to provide logic for each branch, you will get a compiler error.

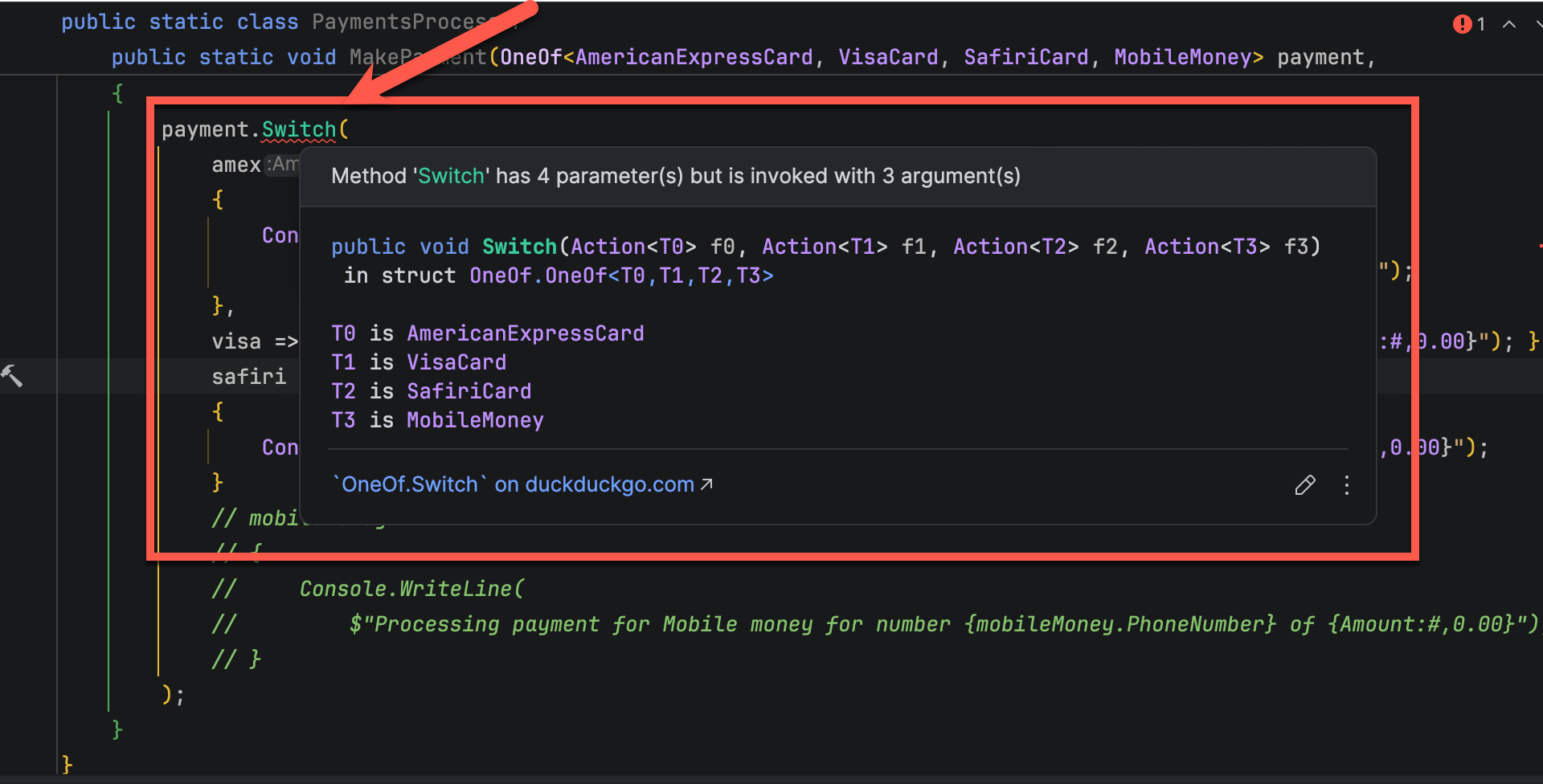

SwitchError

Here, I have commented out one branch, MobileMoney and a compiler error has been generated.

We can then try some transactions:

var amex = new AmericanExpressCard
{
    CardHolderName = "Conrad Akunga",
    CVV = "3423",
    Number = "0100-3224-2344-23234"
};

PaymentsProcessor.MakePayment(amex, 10_000);

var visa = new VisaCard
{
    CardHolderName = "Conrad Akunga",
    CVV = "45354",
    Number = "1234-5678-9190-34234"
};
PaymentsProcessor.MakePayment(visa, 10_000);

var safiri = new SafiriCard
{
    Number = "2343-3423-2342-5646",
    CardHolderName = "Conrad Akunga",
};
PaymentsProcessor.MakePayment(safiri, 10_000);

var mpesa = new MobileMoneyPayment
{
    PhoneNumber = "254-721-345-345",
    Name = "Conrad Akunga"
};

PaymentsProcessor.MakePayment(mpesa, 10_000);

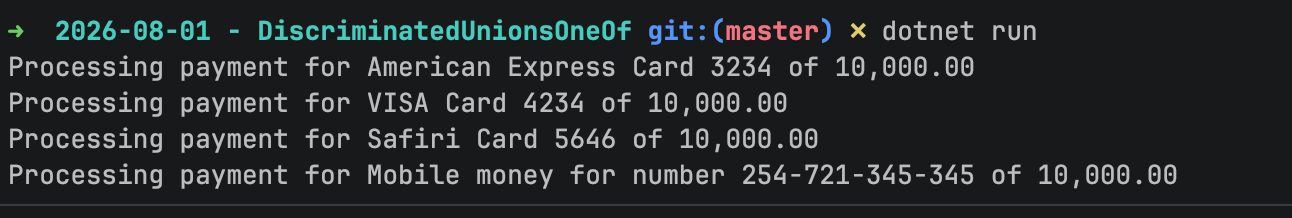

This will print the following:

PaymentsProcessorOneOf

In this fashion we can pass our method completely unrelated types encapsulated into a parameter.

This is called a discriminated union, and has for quite some time been available in functional languages like F#, OCAML & Haskell.

Extensibility is simpler and much more maintainable as if we need to support a new PaymentType, we can simply add that type to the OneOf parameter.

In our next post in the series, we will look at how to use this to solve some common programming problems.

TLDR

Discriminated union allow for the elegant and type-safe solution to the problem where we need to pass unrelated types to methods.

The code is in my GitHub.

Happy hacking!
