The Problem With Excel XLXS For Data Interchange

A popular method for exchanging data between systems is the use of Microsoft Excel files, via the XLSX or older XLS format.

At first glance, this appears to be a viable solution. The XLSX format is well-known, ubiquitous, and there are lots of tools that can read and write XLSX files.

However, you need to be very careful because many of Excel’s features can end up inadvertently shooting you in the foot.

One of the biggest challenges is that Excel goes to great lengths to type your data as you are keying it in.

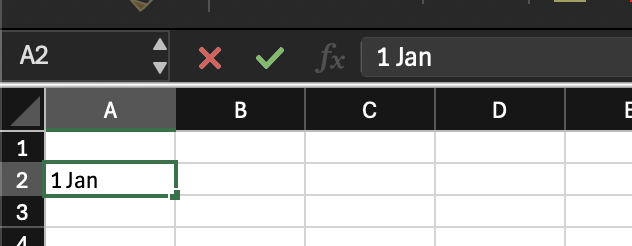

For example, I am currently entering 1 Jan into a cell.

1JanRaw

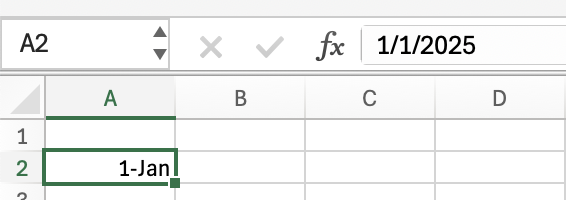

Immediately, I hit Enter, Excel helpfully converts it into a date, and assumes it is the current year.

1JanDate

Generally, this would be a good thing; however, remember that we are exchanging data between systems. What if 1 Jan was data in itself - for example, New Year’s Day?

We encounter a similar problem with data that is logically text but appears to be a number.

For instance, in Kenya, mobile phone numbers begin with a leading 0.

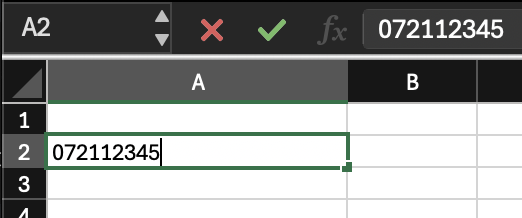

Here I am keying in 072112345

PhoneRaw

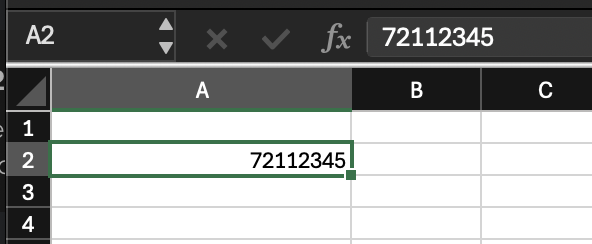

Once I hit enter, Excel helpfully decides that it is a number and drops the zero that it now considers a leading, non-significant digit.

PhoneConverted

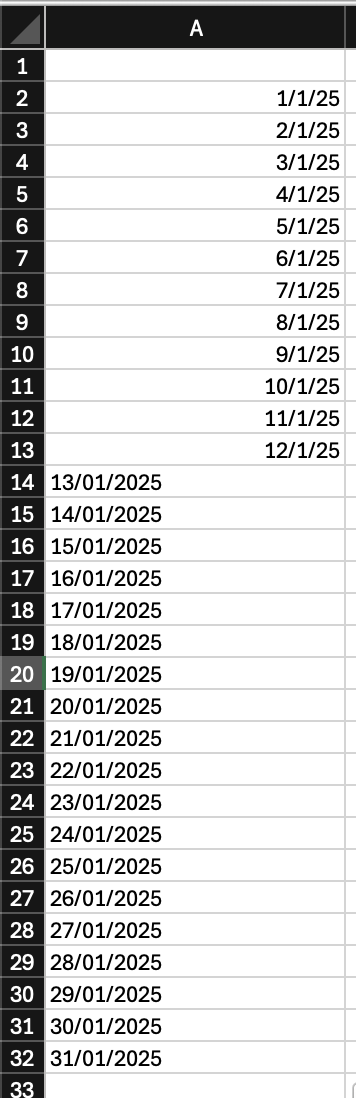

Here is another problem: let’s assume we have the following dates in a file, representing all the days in January.

Let us now paste this into Excel.

Dates

So what has happened here?

Excel has examined each of the entries and determined that they are dates in the US format - Month/Day/Year.

However, when it got to 13/1/2025 it gave up as there is no month 13, and therefore cannot be a date, and decided that everything else is plain text. Hence the change in alignment.

You will get the same problem if you paste dates in US format into a spreadsheet that is in UK (or other) format.

Does this matter?

Yes, when doing data interchange.

Any code that will import data should attempt to validate it.

Most libraries that can read and write XLSX files leverage the fact that the data has a type, and therefore, you might find errors being thrown during the import process as you try to read a date that Excel does not consider a date.

Or even worse, if your code did this:

// Read the value
If IsDate(cell.Value) Then
  'Do your import here
End If

Your code would silently skip data.

There are two solutions to this problem, one on the user side and the other on your side.

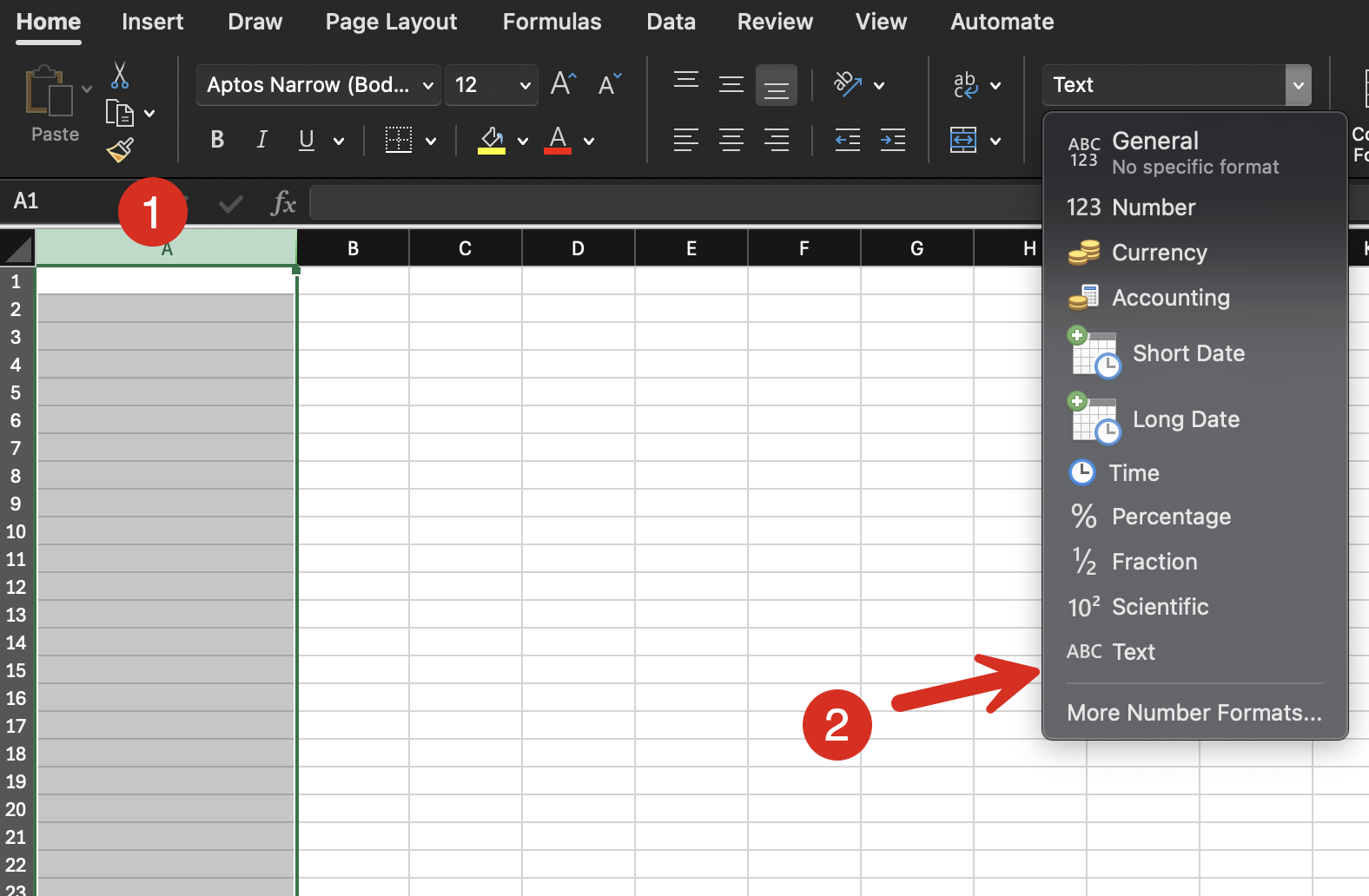

Users should have a thorough understanding of their data, particularly any potentially problematic information. They can then tell Excel not to be clever by explicitly formatting that data as text.

FormatText

The user can then go ahead to enter their data.

If your data is already prepared and you want to paste it, this technique won’t work. Excel will ignore your format and still attempt to coerce your data into a type.

You need to work a bit harder.

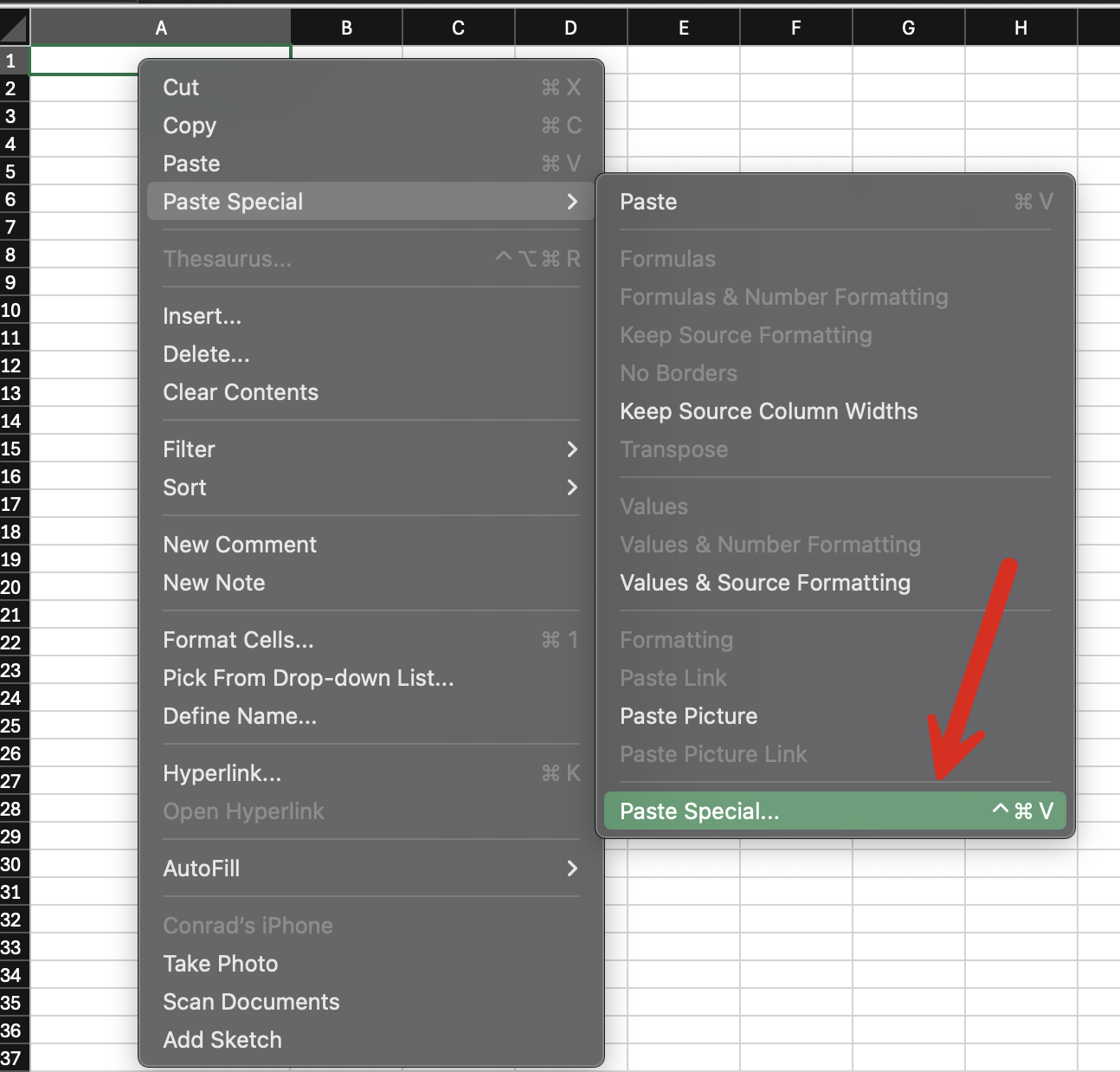

Instead of the usual Paste, right-click and use the Paste Special menu.

PasteMenu

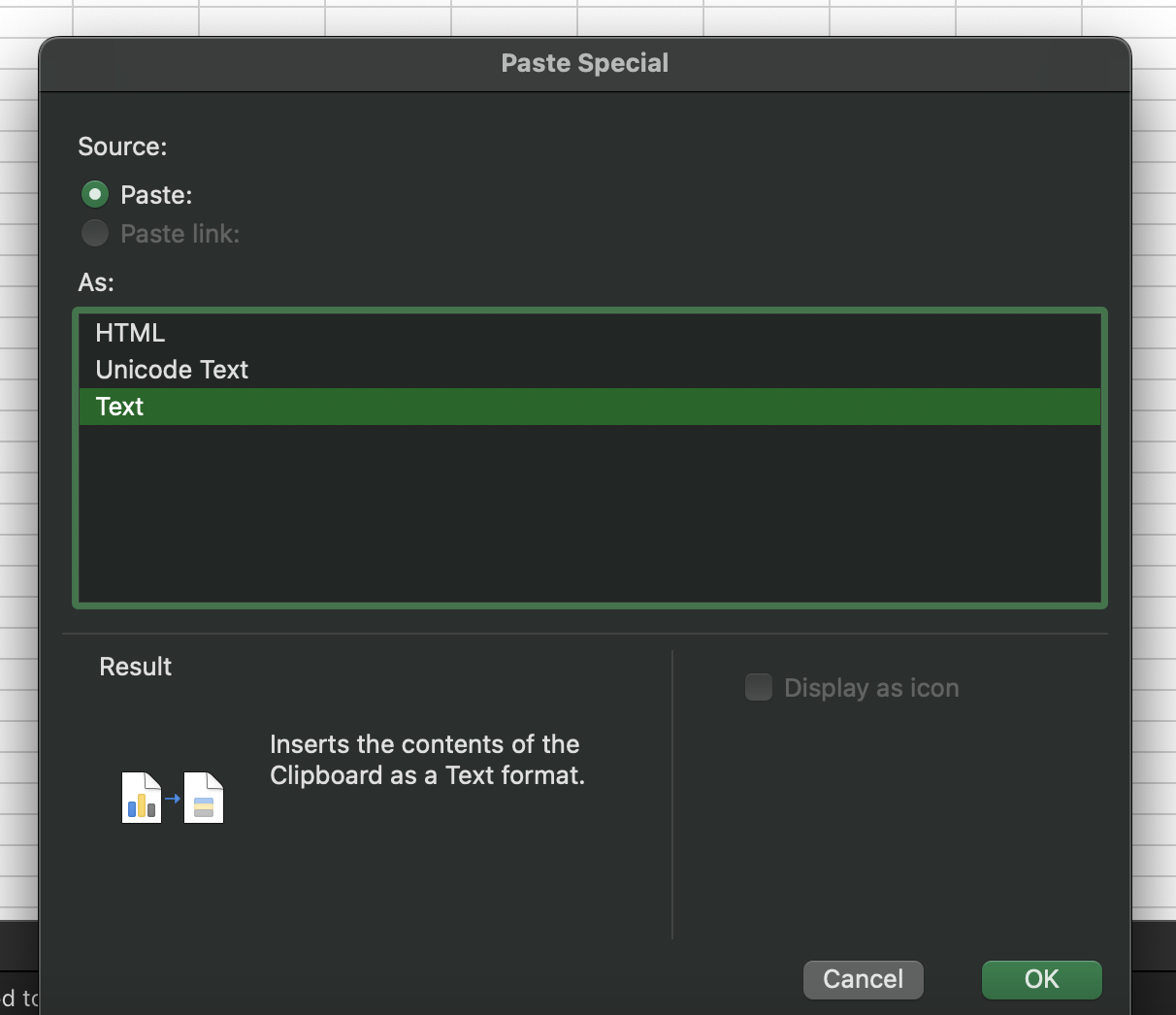

When you click that you get a second dialog:

PasteSpecial

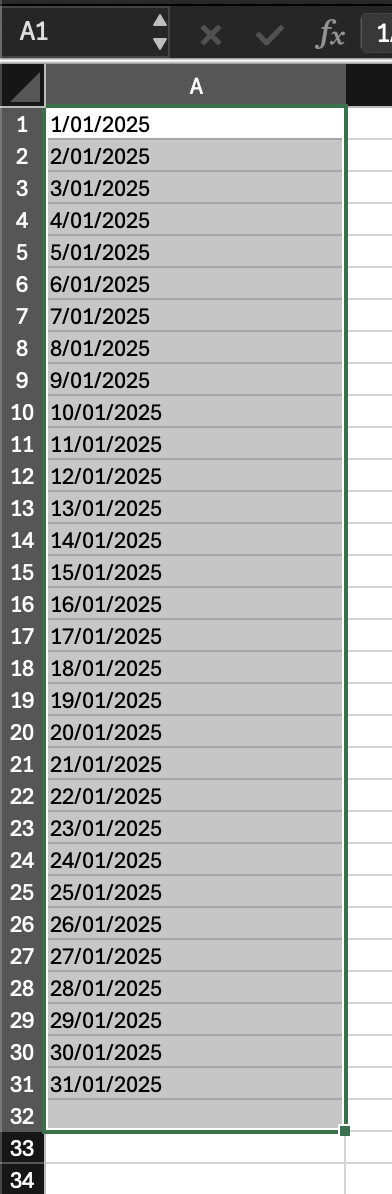

Choose text, and your data will be inserted as-is.

Pasted

Alternatively, you can ensure that all data is in a valid typed format, so that all dates, which may require some massaging, are handled correctly.

The problem with this approach is that:

It places responsibility on your users to remember to do the right thing.
The users who even understand this is a problem are a minority.

A more robust approach will be at ingestion time.

The code that imports should ignore any type information that the XLSX file advertises and attempt to read the data as raw text. Once read, it can then be parsed into the necessary format.

TLDR

Using Excel for data interchange can trip you up in unexpected ways if you’re not careful.

If you need a reliable, (mostly) foolproof format for data interchange, CSV, implemented via RFC4180 is a good one.

I have had a lot of success with Josh Close’s CSVHelper.

Happy hacking!
