Determining The Architecture Of An Emulated 32 Bit Running Process In .NET On Windows

The previous post, Determining If A Running Process Is Emulated 32 Bit In .NET On Windows talked about how to determine if a process is an emulated 32-bit process running on 64-bit Windows.

This post looks at how to determine additional information, such as the architecture under which the emulation is taking place.

For example, there are at least 3 valid 64-bit architectures:

• 64 bit - Intel
• 64 bit - AMD64
• 64 Bit - ARM

We can get this information using the IsWow64Process2 method in the Windows API.

First, we create a data structure to hold our result:

enum Architecture : ushort
{
    Unknown = 0x0,
    I386 = 0x014c, // 32-bit
    Intel64 = 0x020, // Intel 64
    Amd64 = 0x8664, // 64-bit
    Arm64 = 0xAA64 // 64-bit ARM

    // There are others here omitted for brevity
}

Next we setup the interop between .NET and the Windows API

[DllImport("kernel32.dll", SetLastError = true)]
private static extern bool IsWow64Process2(
    IntPtr processHandle,
    out ushort processMachine,
    out ushort nativeMachine
);

Finally, we invoke the API and interrogate the nativeMachine and the processMachine.

if (!IsWow64Process2(Process.GetCurrentProcess().Handle, out ushort processMachine, out ushort nativeMachine))
		throw new System.ComponentModel.Win32Exception();

if (processMachine == (ushort)Architecture.UNKNOWN)
{
  Console.WriteLine($"64 Bit on {(Architecture)nativeMachine}");
}
else
{
  Console.WriteLine($"32-bit (WOW64) on {(Architecture)nativeMachine}");
}

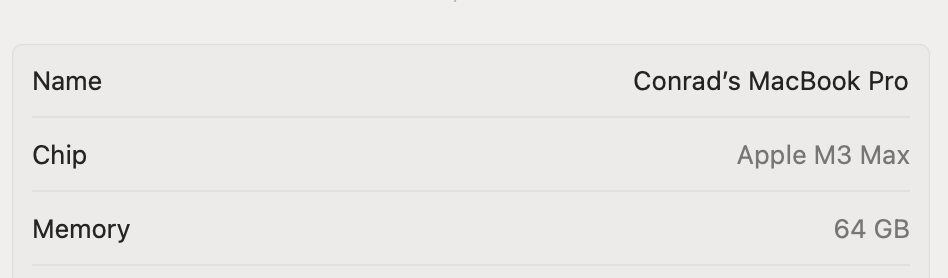

Running this code on a 32-bit process running in a Virtual Machine on my MacBook running macOS:

I get the following result:

32-bit (WOW64) on ARM64

Note that the API IsWow64Process2 is only available on Windows 10 desktop and Windows 2016 Server onwards.

TLDR

The use IsWow64Process2 API call gives additional information about the native and process architectures of a running process.

The code is in my GitHub.

Happy hacking!
