Using Serilog & Structured Logging In Testing - Part 2 - Configuring Logging Destinations

This is Part 2 of a series on using Serilog & structured logging in testing

• Using Serilog & Structured Logging In Testing - Part 1 - Introduction
• Using Serilog & Structured Logging In Testing - Part 2 - Configuring Logging Destinations (This post)
• Using Serilog & Structured Logging In Testing - Part 3 - Testing Log Messages

Our last post looked at how to control logging to the test runner.

In this post, we will look at how to output logs to various destinations.

In our last post, we concluded with the challenge that writing to the ITestOutputHelper has one drawback - you need to have access to the test runner to view the logs.

This is not always possible—perhaps you are not the one running the tests, or the tests are being run on a build server. In this case, we will need to set up a log destination to store our logs.

For this scenario, my recommendation is as follows:

1. If you are developing and testing locally, i.e., on a single machine, use Seq
2. If you are part of a team or want the logs to be accessed remotely, use ElasticSearch and Kibana

For this example, I will use Seq.

Seq is simpler to set up, run, and use. However, the free version of Serilog can only log to localhost and can only be accessed from the localhost URL.

For infrastructure such as this, I typically use Docker, though you can install it directly if you want to.

Create the following docker-compose.yaml file:

services:
  seq:
    image: datalust/seq:preview
    container_name: seq
    restart: unless-stopped
    environment:
      - ACCEPT_EULA=Y
      - TZ=Africa/Nairobi
    ports:
      - 81:80
      - 5341:5341

A couple of things to note:

1. I am using the preview version. If you want the latest version, use datalust/seq.
2. I have set the timezone to where I am to make it easier to correlate the log timestamps with my current locale. Get into the habit of doing this for your docker containers. You can pick yours from here (the TZ identifier column)
3. I have mapped the admin interface to port 81 from the default 80 but left the logging interface to 5431

From the folder docker-compose.yaml file is in, run the following command:

docker-compose up -d --build

We have discussed the shortcut to quickly upgrade containers in a previous post.

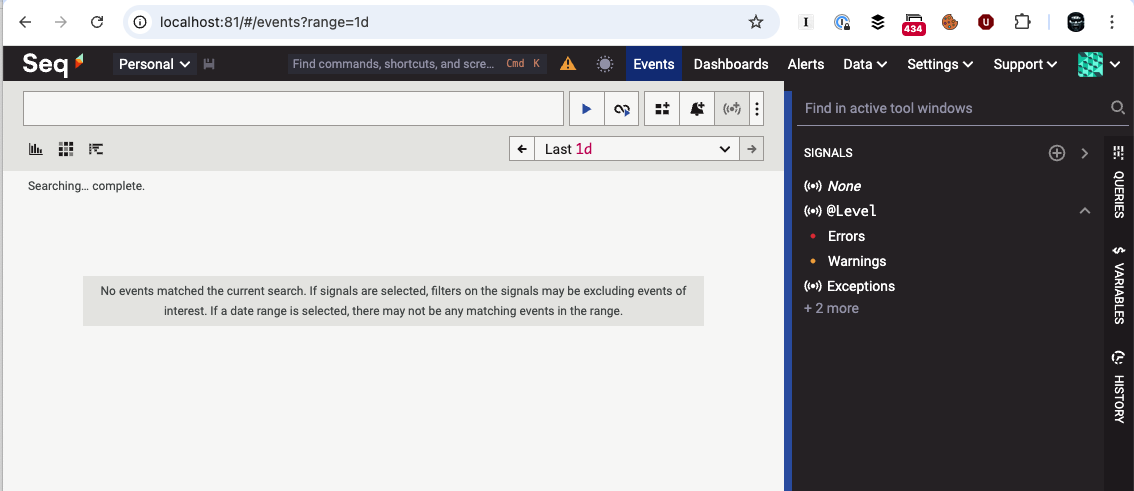

You should be able to access Seq from the URL http://localhost:81/

The next thing to do is to add some packages to our test project.

1. Serilog.Sinks.Xunit - For interfacing with Serilog for structured logging
2. Serilog.Sinks.Seq - For interfacing with Seq
3. SerilogAnalyzers - for design time help to fix common bad logging practices.

Then, in our tests, we write a constructor like this:

public CalculatorTests(ITestOutputHelper testOutputHelper)
{
    Log.Logger = new LoggerConfiguration()
      // Wire in the test output helper
      .WriteTo.TestOutput(testOutputHelper)
      // Wire in seq
      .WriteTo.Seq("http://localhost:5341")
      .CreateLogger();
}

Finally, we add proper logging to the tests.

[Theory]
[ClassData(typeof(AdditionTestData))]
public void Integer_Addition_Is_Correct(int first, int second, int result)
{
  var calc = new Calculator<int>();
  Log.Information("Adding {First} + {Second} for integer", first, second);
  calc.Add(first, second).Should().Be(result);
}

[Theory]
[ClassData(typeof(AdditionTestData))]
public void Decimal_Addition_Is_Correct(decimal first, decimal second, decimal result)
{
  var calc = new Calculator<decimal>();
  Log.Information("Adding {First} + {Second} for decimal", first, second);
  calc.Add(first, second).Should().Be(result);
}

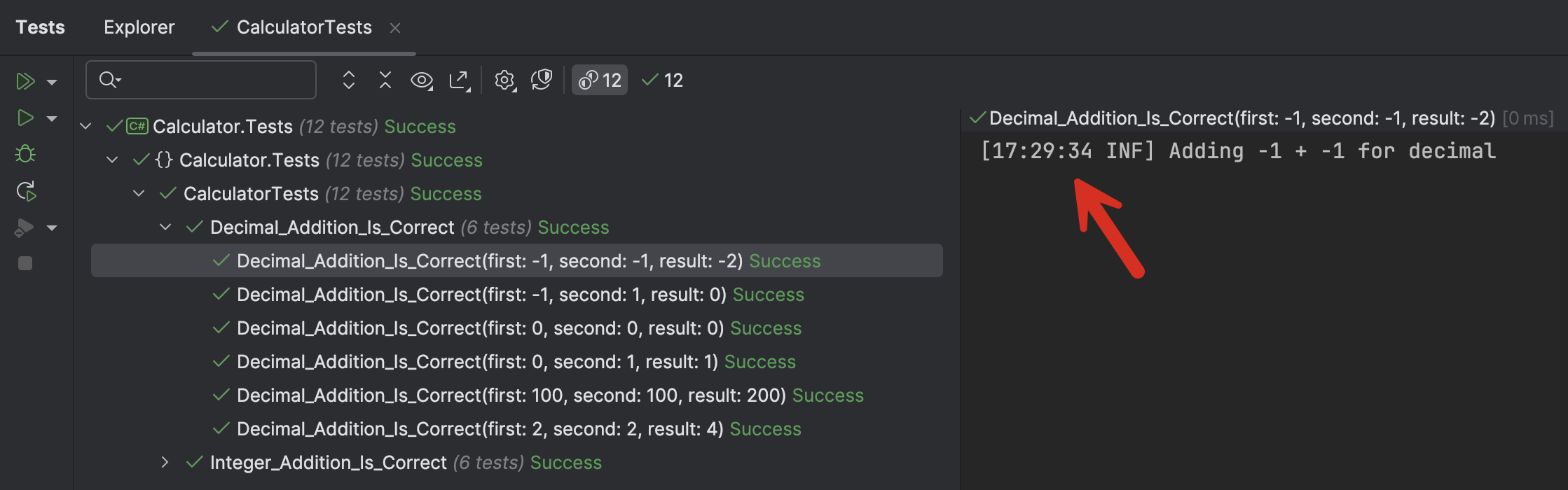

If we run the tests, we will see the following in the test runner console:

In addition to our log message, we also get a time stamp.

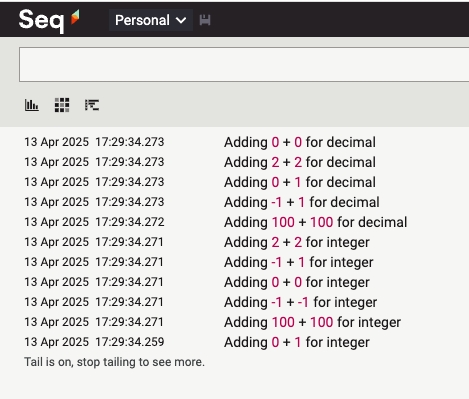

If we switch to Seq we will see the following:

We can expand one entry by clicking to see the passed values:

To make this more useful, we can add additional properties to the logs

1. The machine name
2. The logged-on user
3. Some custom property

We can achieve this using Serilog Enrichers.

The Nuget package with the enrichers for machine name, logged-on user, and other environment variables is Serilog.Enrichers.Environment

Once installed we update our constructor as follows:

public CalculatorTests(ITestOutputHelper testOutputHelper)
{
Log.Logger = new LoggerConfiguration()
    // Add the machine name to the logged properties
    .Enrich.WithMachineName()
    // Add the logged-in username to the logged properties
    .Enrich.WithEnvironmentUserName()
    // Add a custom property
    .Enrich.WithProperty("Codename", "Bond")
    // Wire in the test output helper
    .WriteTo.TestOutput(testOutputHelper)
    // Wire in seq
    .WriteTo.Seq("http://localhost:5341")
    .CreateLogger();
}

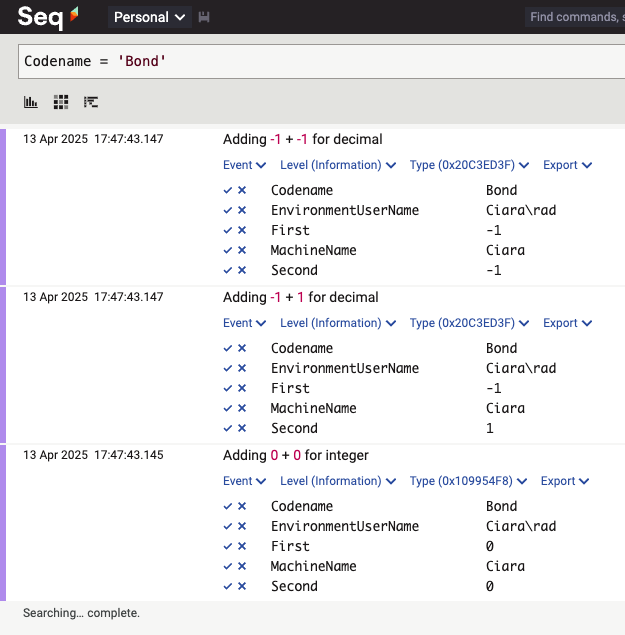

Once we re-run our tests, an expanded entry looks like this:

The value of these properties is that they can be used to sort, search, and filter.

In this fashion, we can not only store our logs in custom destinations, but we can also enrich them with additional properties.

To log into ElasticSearch, you only need to do the following:

1. Install the sink for ElasticSearch - Elastic.Serilog.Sinks
2. Update the code to write to ElasticSearch

The code will be as follows:

public CalculatorTests(ITestOutputHelper testOutputHelper)
{
    Log.Logger = new LoggerConfiguration()
        // Add the machine name to the logged properties
        .Enrich.WithMachineName()
        // Add the logged-in username to the logged properties
        .Enrich.WithEnvironmentUserName()
        // Add a custom property
        .Enrich.WithProperty("Codename", "Bond")
        // Wire in the test output helper
        .WriteTo.TestOutput(testOutputHelper)
        // Wire in seq
        .WriteTo.Seq("http://localhost:5341")
        // Wire in ElasticSearch
        .WriteTo.Elasticsearch([new Uri("http://localhost:9200")], opts =>
        {
            opts.DataStream = new DataStreamName("logs", "Innova", applicationName.Replace(" ", ""));
            opts.BootstrapMethod = BootstrapMethod.Silent;
            opts.ConfigureChannel = channelOpts => { channelOpts.BufferOptions = new BufferOptions(); };
        }, transport =>
        {
            // transport.Authentication(new BasicAuthentication(username, password)); // Basic Auth
            // transport.Authentication(new ApiKey(base64EncodedApiKey)); // ApiKey
        })
        .CreateLogger();
}

In our next post, we will examine how to test log messages.

TLDR

We can leverage the power of structured logging to store enriched logs from test runs in central storage like Seq or ElasticSearch.

The code is in my GitHub.

Happy hacking!
