This is Part 16 of a series on using Dapper to simplify data access with ADO.NET

In a previous post, I talked about passing data to Dapper.

In particular, I gave the following example:

app.MapPost("/Login", (SqliteConnection cn, ILogger<Program> logger, LoginRequest request) =>
{
    var param = new DynamicParameters();
    // Create the Username parameter, specifying all the details
    param.Add("Username", request.Username, DbType.String, ParameterDirection.Input, 100);
    // Crete the password parameter
    param.Add("Password", request.Password);
    // Set the command query text
    var query = "SELECT 1 FROM USERS WHERE Username=@Username AND Password=@Password";
    // Execute the query
    var status = cn.QuerySingleOrDefault<int>(query, param);
    // Check the returned number
    if (status == 1)
    {
        // We are now logged in
        logger.LogInformation("User logged in successfully");
        return Results.Ok();
    }

    logger.LogError("Login Failed");
    // Return a 401
    return Results.Unauthorized();
});

and then I said the following:

The Username here has all its parameters explicitly set.

You generally do not need to do this - the name and the value are usually enough. The database engine will figure out the rest.

This is normally true, but there are times when you need to be explicit about the type.

We shall demonstrate this using the following table:

create table Countries
(
    CountryID uniqueidentifier primary key,
    Name      nvarchar(200) not null unique
)

The scenarios are these:

  1. Output parameters
  2. Input parameters where the type is not coercible from varchar

Output Parameters

Suppose we had this procedure that returned the primary key of a newly inserted Country.

create or alter proc [Countries.Insert] @Name nvarchar(250), @CountryID uniqueidentifier output
as
begin
    declare @NewID uniqueidentifier = newid()
    insert Countries(CountryID, Name) values (@NewID, @Name)
end
go

We then create two types, our Country and a CountryCreateRequest data transfer object.

public sealed record Country
{
    public Guid CountryID { get; set; }
    public string Name { get; set; } = null!;
}

And

public sealed record CreateCountryRequest
{
    public string Name { get; set; } = null!;
}

We would invoke this procedure from an endpoint as follows:

app.MapPost("/Countries", async (SqlConnection cn, ILogger<Program> logger, CreateCountryRequest request) =>
{
    var param = new DynamicParameters();
    param.Add("Name", request.Name);
    param.Add("CountryID", dbType: DbType.Int32, direction: ParameterDirection.Output);

    var result = await cn.ExecuteAsync("[Countries.Insert]", param);

    // Fetch the new ID
    var id = param.Get<int>("CountryID");
    logger.LogInformation("New Country ID: {ID}", id);

    if (result > 0)
        return Results.Ok();
    return Results.StatusCode(StatusCodes.Status304NotModified);
});

If we look at the logs, you will see the following:

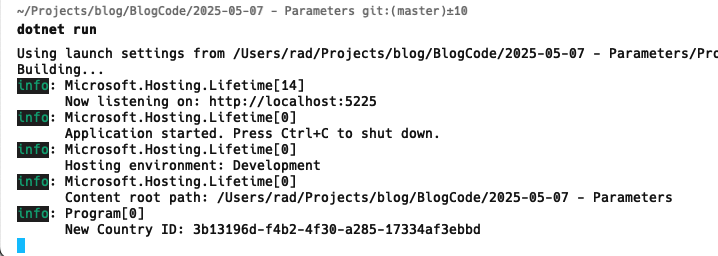

OutputParameterLog

If you omit the type, such that your code is like this:

var param = new DynamicParameters();
param.Add("Name", request.Name);
param.Add("CountryID", direction: ParameterDirection.Output);

var result = await cn.ExecuteAsync("[Countries.Insert]", param);

you will get the following exception:

fail: Microsoft.AspNetCore.Diagnostics.DeveloperExceptionPageMiddleware[1]
      An unhandled exception has occurred while executing the request.
      System.InvalidOperationException: String[1]: the Size property has an invalid size of 0.

Non-coercible From VarChar Types

Let us take a case where we need to maintain Bureau entities consisting of an ID, Name, and Logo.

The table will look like this:

create table Bureaus
(
    BureauID int identity primary key,
    Name     nvarchar(250) not null unique,
    Logo     varbinary(MAX)
)

The procedure will look like this:

create or alter proc [Bureaus.Insert] @Name nvarchar(250), @Logo varbinary(MAX), @BureauID int output
as
begin
    insert Bureaus(Name, Logo) values (@Name, @Logo)
    set @BureauID = ident_current('Bureaus')
end

The Bureau type will look like this:

public sealed class Bureau
{
    public int BureauID { get; set; }
    public string Name { get; set; } = null!;
    public byte[]? Logo { get; set; }
}

And the created DTO will look like this:

public sealed record CreateBureauRequest
{
    public string Name { get; set; } = null!;
    public string LogoText { get; set; }
}

This works by using the LogoText of the CreateBureauRequest to generate a Logo, which is then stored in the database.

For this, we will require a library, SkiaSharp

The endpoint will look like this:

app.MapPost("/Bureaus", async (SqlConnection cn, CreateBureauRequest request) =>
{
    // Generate a logo from the logo text

    // Create bitmap
    using var bitmap = new SKBitmap(500, 100);
    // Create canvas from bitmap
    using var canvas = new SKCanvas(bitmap);
    // Set the background colour
    canvas.Clear(SKColors.White);
    // Create a font - use the default
    var font = new SKFont
    {
        Typeface = SKTypeface.Default,
        Size = 35
    };
    // Create and configure paint object
    using var paint = new SKPaint();
    paint.Color = SKColors.Red;
    paint.IsAntialias = true;
    // Draw the text
    canvas.DrawText(request.LogoText, 20, 50, font, paint);
    // Get an image
    using var image = SKImage.FromBitmap(bitmap);
    // Encode the image as a PNG at full quality
    using var data = image.Encode(SKEncodedImageFormat.Png, 100);
    // Get the bytes
    var imageData = data.ToArray();

    // Set the parameters
    var param = new DynamicParameters();
    param.Add("Name", request.Name);
    param.Add("BureauID", dbType: DbType.Int32, direction: ParameterDirection.Output);
    param.Add("Logo", imageData, dbType: DbType.Binary);

    var result = await cn.ExecuteAsync("[Bureaus.Insert]", param);

    if (result > 0)
        return Results.Ok();
    return Results.StatusCode(StatusCodes.Status304NotModified);
});

Next, we start the app and make a request:

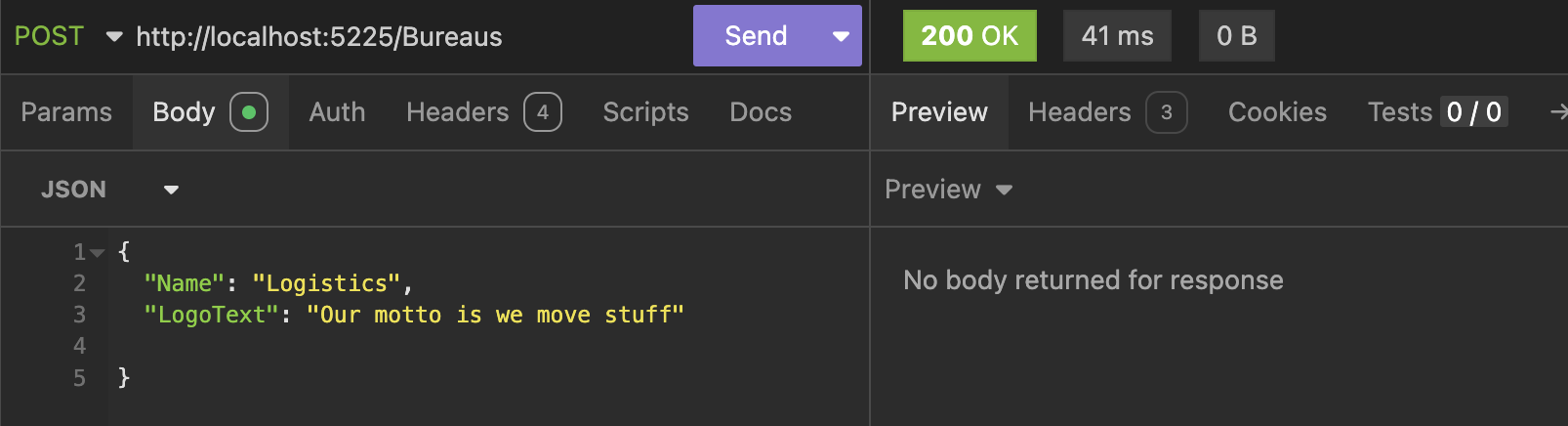

CreateBureauRequest

If we look in the database, we should see the data:

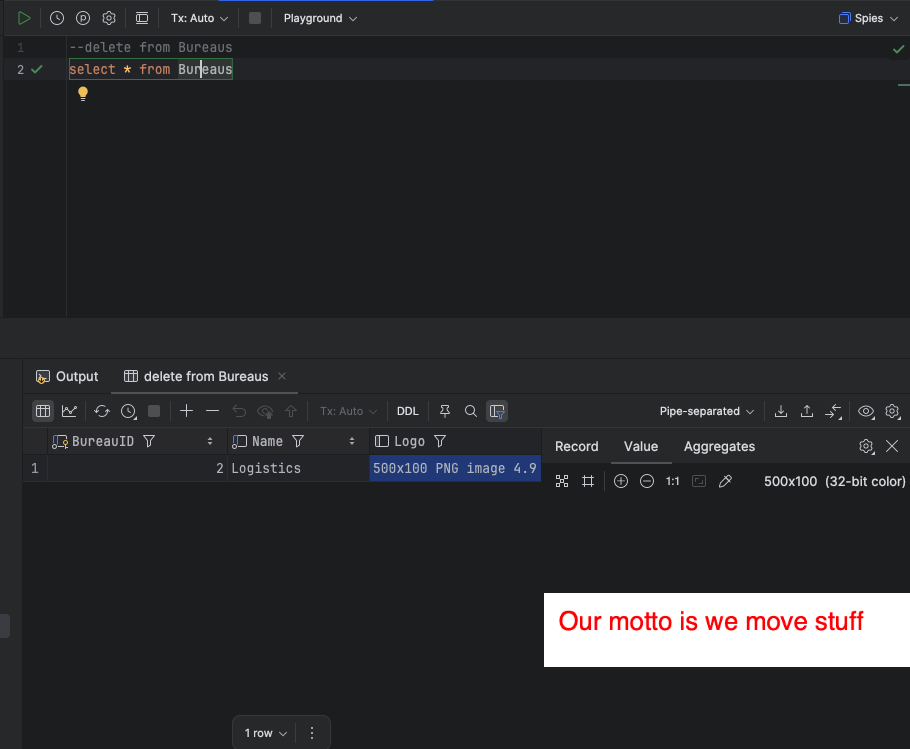

CreateBureauData

Given that we have defined that the Logo is nullable, let us test that scenario, but remove the code that specifies the type.

If we change the code from this:

param.Add("Logo", imageData, dbType: DbType.Binary);

To this:

param.Add("Logo", imageData);

And then request this payload:

{
	"Name": "Wet Affairs",
	"LogoText": null
}

The following exception will be thrown:

fail: Microsoft.AspNetCore.Diagnostics.DeveloperExceptionPageMiddleware[1]
      An unhandled exception has occurred while executing the request.
      Microsoft.Data.SqlClient.SqlException (0x80131904): Implicit conversion from data type nvarchar to varbinary(max) is not allowed. Use the CONVERT function to run this query.

We can see here that the server is treating the data as a varchar.

The fix for this is to specify the type.

param.Add("Logo", imageData, dbType: DbType.Binary);

If we re-run this:

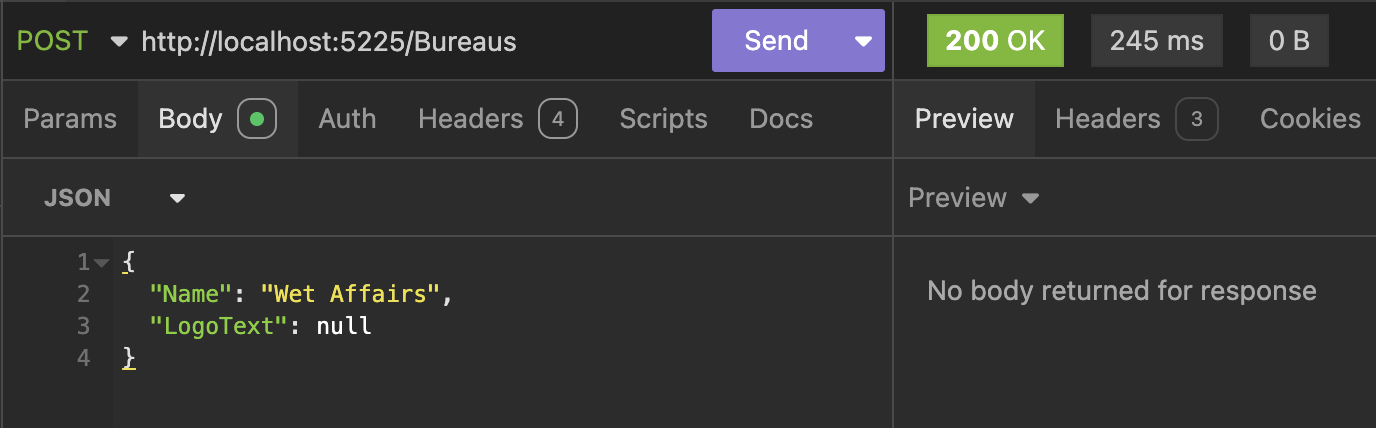

CoerceSuccess

To avoid surprises, and for maximum clarity, it is advisable to specify the types of parameters when executing queries.

TLDR

It is probably advisable to always specify at least the type (and maybe the size) of parameters when submitting queries to the database.

The code is in my GitHub.

Happy hacking!
