Looping Through DevExpress Menu Bar Menu Items
[VB.NET, C#, DevExpress]
DevExpress exposes its UI elements (buttons, menus, etc.) using the XtraBars library.

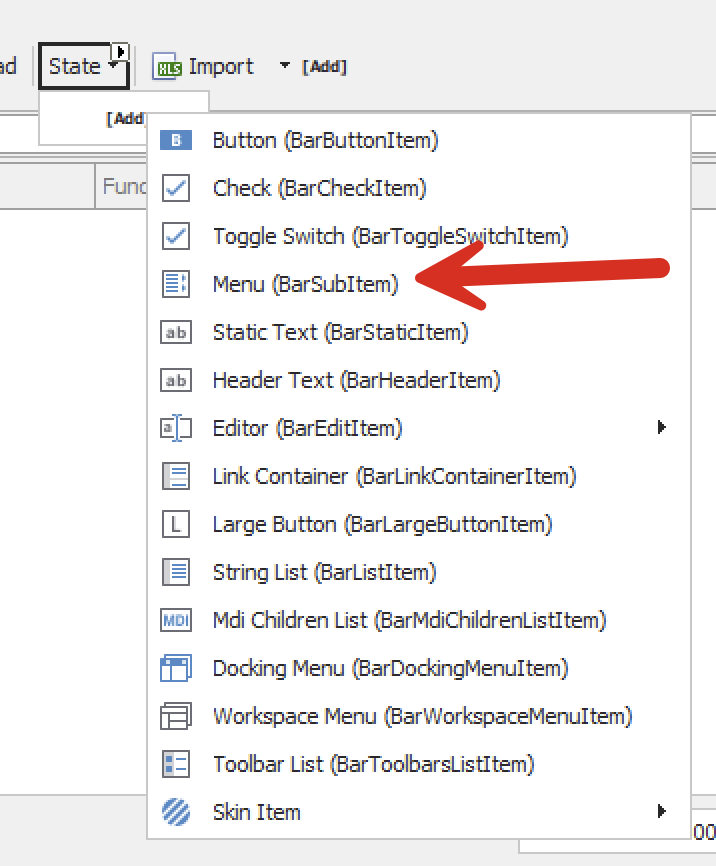

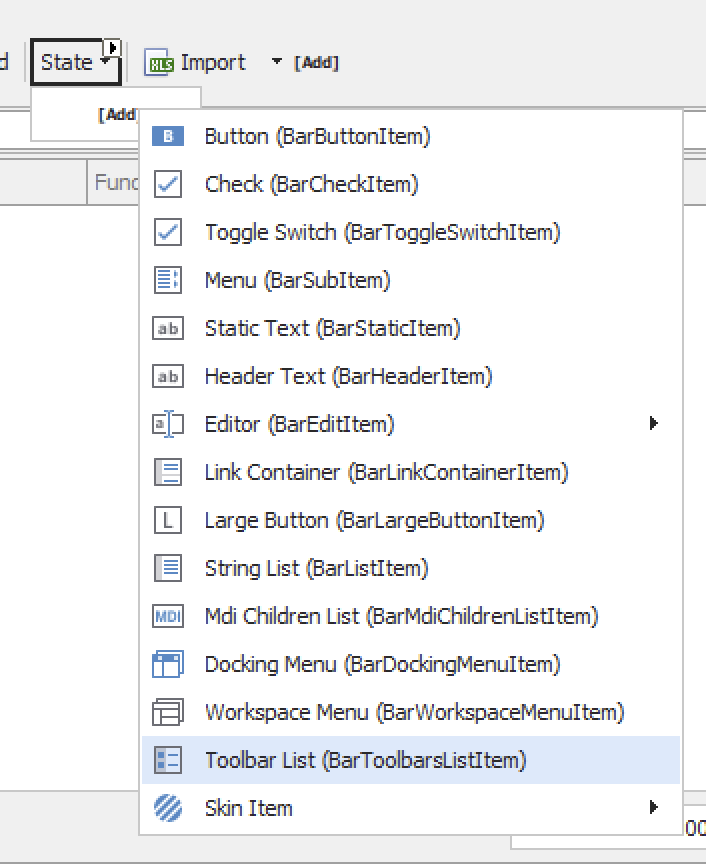

Menus in particular are a complex issue because menus can contain any of the following items:
Many of these elements are top-level containers, like the Button
(BarButtonItem) or the StaticText
(BarStaticItem).
Some can be elements containing other items, for example, the Menu
(BarSubItem), which in turn can contain any of the pictured elements.
If you have (programmatically or otherwise) added elements to a menu, you might need to iterate
through the elements and perform some logic.
This can get quite tricky because the object mode is not what you would expect.
First of all, you need to know if the item you want to iterate through is a top-level container.
For example, this menu is populated at runtime with elements, and we want to iterate through each of these menu items and remove their handler.
The items in a top-level container (like a menu) are stored in a collection called the BarItemLinkCollection in a property called ItemLinks.
We thus loop through them like this in VB.NET:
For Each link As BarItemLink In mnuState.ItemLinks
'Your code here
Next
This is the equivalent code in C#:
foreach (BarItemLink link in mnuState.ItemLinks)
{
// Your code here
}
You still need to do a bit of work here, because the link
variable here is of type BarItemLink.
This means you need to cast it to what you are expecting (or check at runtime first).
Given that I am expecting this to be a BarButtonItem
, I will need to cast the link
object.
Here is the code in VB.NET:
For Each link As BarItemLink In mnuState.ItemLinks
RemoveHandler DirectCast(link.Item, BarButtonItem).ItemClick, AddressOf MyHandlerHere
Next
And the equivalent in C#:
foreach (BarItemLink link in mnuState.ItemLinks)
{
if (link.Item is BarButtonItem barButton)
{
barButton.ItemClick -= MyHandlerHere;
}
}
TLDR
Iteration through DevExpress XtraBar
elements requires knowledge of the underlying object model.
Happy hacking!
