This is Part 12 of a series on using State Machines to express complex logic.

In our last post, we looked at how to have conditional logic based on how a state was transitioned into, using the context of the invoked Trigger.

In this post, we shall look at the nuances between a state entry and a state activation.

For this example, we will use a MediaPlayer that has the following interface defining it’s contract:

public interface IMediaPlayer
{
    Task Startup();
    Task ShutDown();
    Task Play();
    Task Stop();
    Task Pause();
    Task Resume();
}

The following are the allowed States:

public enum State
{
    Initializing,
    Ready,
    Playing,
    Paused
}

The following are the defined Triggers:

public enum Trigger
{
    Play,
    Stop,
    Pause,
    Resume,
    Initialize
}

Here is the problem:

  1. When we shut down the media player, we need to save its state.
  2. When transitioning to the Ready state when powering on, we need to load the state from storage. And this should only happen when powering on.
  3. When stopping/pausing and resuming, the loading from the state should not be carried out.

In other words, we want our code to behave in a particular way when transitioning to ready after powering on and only when powering on.

Remember that the code for OnEntry() always fires when the transition occurs, which will not solve this problem.

We can introduce a different Trigger, but that is overly complex.

The solution to this problem is to use the Activate() method of the state machine.

When this method is called, a method called OnActivate (or its async equivalent OnActivateAsyc()) fires.

We can use this to have code run only when the MediaPlayer transitions to the Ready state after powering on.

The class looks like this:

using Serilog;
using Stateless;
using Stateless.Graph;

namespace MediaPlayer;

public class MediaPlayer : IMediaPlayer
{
    private int _position = 0;
    private readonly StateMachine<State, Trigger> _stateMachine;
    public State CurrentState => _stateMachine.State;

    public MediaPlayer()
    {
        _stateMachine = new StateMachine<State, Trigger>(State.Initializing);

        _stateMachine.Configure(State.Initializing)
            .Permit(Trigger.Initialize, State.Ready);

        _stateMachine.Configure(State.Ready)
            .Permit(Trigger.Play, State.Playing)
            .OnEntryAsync(async () =>
            {
                // This awways fires on transition
                await Task.Delay(TimeSpan.FromSeconds(1));
                Log.Information("Ready...");
            })
            .OnActivateAsync(async () =>
            {
                // This only fires when invoked from Startup
                await Task.Delay(TimeSpan.FromSeconds(1));
                Log.Information("Loading media & position...");
            });

        _stateMachine.Configure(State.Playing)
            .Permit(Trigger.Pause, State.Paused)
            .Permit(Trigger.Stop, State.Ready)
            .OnEntry(() =>
            {
                // Play media
                Log.Information("Playing..");
                _position++;
            });

        _stateMachine.Configure(State.Paused)
            .Permit(Trigger.Resume, State.Playing)
            .Permit(Trigger.Stop, State.Ready)
            .OnEntry(() =>
            {
                // Pause
                Log.Information("Pause...");
            });
    }

    public async Task Startup()
    {
        await _stateMachine.FireAsync(Trigger.Initialize);
        await _stateMachine.ActivateAsync();
    }

    public async Task ShutDown()
    {
        await Task.Delay(TimeSpan.FromSeconds(1));
        Log.Information("Saving position {Position} to storage ...", _position);
    }

    public async Task Play()
    {
        await _stateMachine.FireAsync(Trigger.Play);
    }

    public async Task Stop()
    {
        await _stateMachine.FireAsync(Trigger.Stop);
    }

    public async Task Pause()
    {
        await _stateMachine.FireAsync(Trigger.Pause);
    }

    public async Task Resume()
    {
        await _stateMachine.FireAsync(Trigger.Resume);
    }
}

Finally a test to make sure everything runs correctly:

[Fact]
public async Task Media_Player_Transitions_Correctly()
{
    var mediaPlayer = new MediaPlayer();
    mediaPlayer.CurrentState.Should().Be(State.Initializing);
    await mediaPlayer.Startup();
    _output.Output.Should().EndWith("Loading media & position...\n");
    mediaPlayer.CurrentState.Should().Be(State.Ready);
    await mediaPlayer.Play();
    mediaPlayer.CurrentState.Should().Be(State.Playing);
    await mediaPlayer.Pause();
    mediaPlayer.CurrentState.Should().Be(State.Paused);
    await mediaPlayer.Resume();
    mediaPlayer.CurrentState.Should().Be(State.Playing);
    await mediaPlayer.Stop();
    mediaPlayer.CurrentState.Should().Be(State.Ready);
    _output.Output.Should().EndWith("Ready...\n");
}

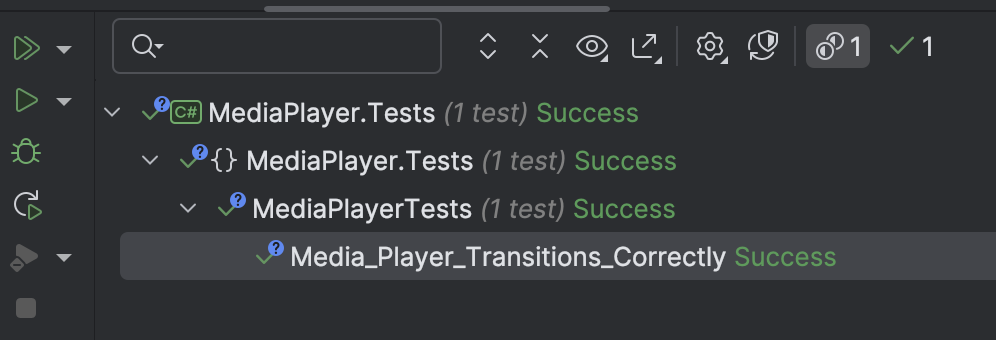

The tests pass, as expected.

ActivateTests

Activation is very useful for scenarios like this, where the state can be persisted and loaded later, and you want the logic around loading the state to be separate from the actual logic.

TLDR

The OnActivate() and OnActivateAsync() can be used to control logic on state transition when invoked by calling the Activate() method of the state machine.

The code is in my GitHub.

Happy hacking!
