Discriminated Unions - Part 1 - Introduction

This is Part 1 of a series on Discriminated Unions.

In this post, we will start to look at the concept of discriminated unions and how they elegantly solve type design problems.

For this, we will use a practical example and work our way up from there.

Take a problem domain where you need to model card payments.

We can model our card, Card, like this:

public sealed class Card
{
  public required string Number { get; init; }
  public required string CVV { get; init; }
  public required string CardHolderName { get; init; }
}

We also need to model a payments processor, PaymentProcessor.

public static class PaymentsProcessor
{
  public static void MakePayment(Card card, decimal Amount)
  {
  	Console.WriteLine($"A payment of {Amount:#,0.00} was made by card ending in XXXX-{card.Number[^4..]}");
  }
}

We then create a Card, like this:

var card = new Card
{
  Number = "0123-4567-8901",
  CardHolderName = "Conrad Akunga",
  CVV = "342"
};

We then use it like this:

// Make a payment with the card
PaymentsProcessor.MakePayment(card, 10_000);

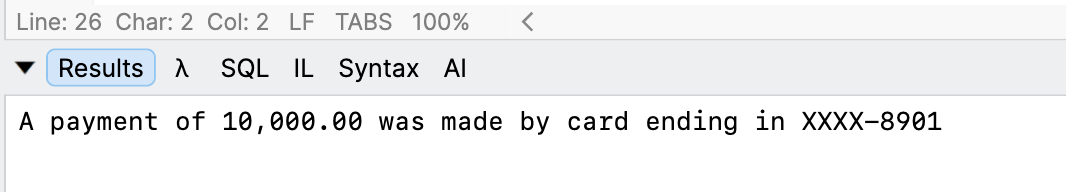

This should print the following:

So far, so good.

Now suppose this was a VISA card, and American Express has entered the market.

VISA has a 3-digit CVV, and American Express has a 4-digit CVV.

Further, our PaymentsProcessor needs to be aware of each card type.

We have two options here:

1. Create 2 different types to capture this reality
2. Adapt the PaymentProcessor to handle the different card types.

Like so:

public sealed class VisaCard
{
  public required string Number { get; init; }
  public required string CVV { get; init; }
  public required string CardHolderName { get; init; }
}

And like so:

public sealed class AmericanExpressCard
{
  public required string Number { get; init; }
  public required string CVV { get; init; }
  public required string CardHolderName { get; init; }
}

Our PaymentProcessor now looks like this:

public static class PaymentsProcessor
{
  public static void MakePayment(VisaCard card, decimal Amount)
  {
	Console.WriteLine($"A payment of {Amount:#,0.00} was made by VISA card ending in XXXX-{card.Number[^4..]}");
  }
  public static void MakePayment(AmericanExpressCard card, decimal Amount)
  {
	Console.WriteLine($"A payment of {Amount:#,0.00} was made by AMEX card ending in XXXX-{card.Number[^4..]}");
  }
}

You can see in this approach that there is a lot of duplication.

Plus, is there really that much of a difference between the two cards?

Suppose we unified the cards like this: first, a base abstract class:

public abstract class Card
{
  public required string Number { get; init; }
  public abstract string Type { get; }
  public required string CVV { get; init; }
  public required string CardHolderName { get; init; }
}

Here, we have added a new property, Type, to easily label the cards.

Then a VISA implementation:

public class VisaCard : Card
{
	public override string Type => "VISA";
}

Then, an American Express implementation:

public class AmericanExpressCard : Card
{
	public override string Type => "American Express";
}

Finally, we update our PaymentProcessor:

public static class PaymentsProcessor
{
  public static void MakePayment(Card card, decimal Amount)
  {
    switch (card)
    {
      case VisaCard:
      	Console.WriteLine($"A payment of {Amount:#,0.00} was made by VISA card ending in XXXX-{card.Number[^4..]}");
      	break;
      case AmericanExpressCard:
      	Console.WriteLine($"A payment of {Amount:#,0.00} was made by American Express card ending in XXXX-{card.Number[^4..]}");
      	break;
    }
  }
}

We use it like this:

var amex = new AmericanExpressCard
{
  CardHolderName = "Conrad Akunga",
  CVV = "3423",
  Number = "0100-3224-2344-23234"
};

var visa = new VisaCard
{
  CardHolderName = "Conrad Akunga",
  CVV = "45354",
  Number = "1234-5678-9190-34234"
};

PaymentsProcessor.MakePayment(visa, 10_000);
PaymentsProcessor.MakePayment(amex, 15_000);

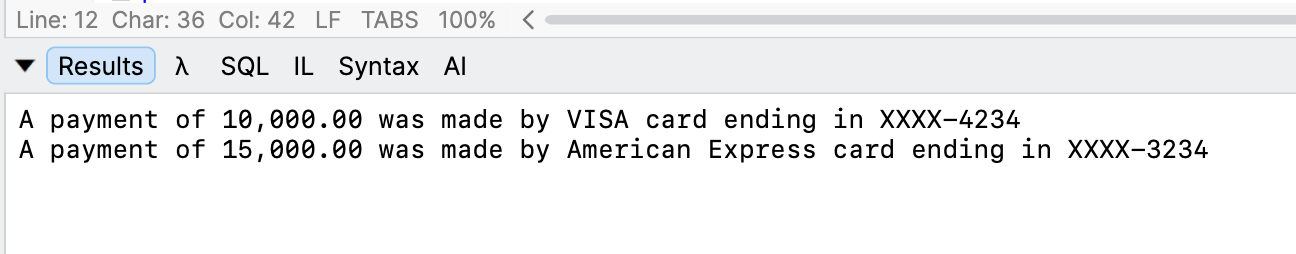

This will print the following:

So far so good.

Now imagine the entry of yet another card type - the Safiri Card.

This one does not have a CVV at all.

This complicates our design based on this base type:

public abstract class Card
{
  public required string Number { get; init; }
  public abstract string Type { get; }
  public required string CVV { get; init; }
  public required string CardHolderName { get; init; }
}

And then, as is the case in my home country, Kenya, there is a new player - mobile money. This is not a card at all.

In our next post, we will look at how to tackle this.

TLDR

Type design can start off well and quickly become complicated.

The code is in my GitHub.

Happy hacking!
