Flexible Leveraging of appsettings.json in .NET Applications

In the post Loading & Using Application Settings In .NET, we looked at how to load and utilize application settings in a .NET application such as a WebAPI, background service or even a console application.

In this post we will look at the flexibility the configuration infrastructure exposes for us to leverage.

Let us use a simple example. We wish to allow configuration of a WebAPI using the following SystemSettings object.

public class SystemSettings
{
    public string ForegroundColour { get; set; }
    public string BackgroundColour { get; set; }
}

These would be setup in the appsettings.json as follows:

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*",
  "SystemSettings": {
    "ForegroundColour": "White",
    "BackgroundColour": "Black"
  }
}

We configure our dependency injection to load the settings as follows:

var builder = WebApplication.CreateBuilder(args);
builder.Services.AddOptions<SystemSettings>()
    .Bind(builder.Configuration.GetSection(nameof(SystemSettings)));

var app = builder.Build();

Finally, we write a simple API to load and output the current settings:

app.MapGet("/", (IOptions<SystemSettings> options) =>
{
    var settings = options.Value;
    return settings;
});

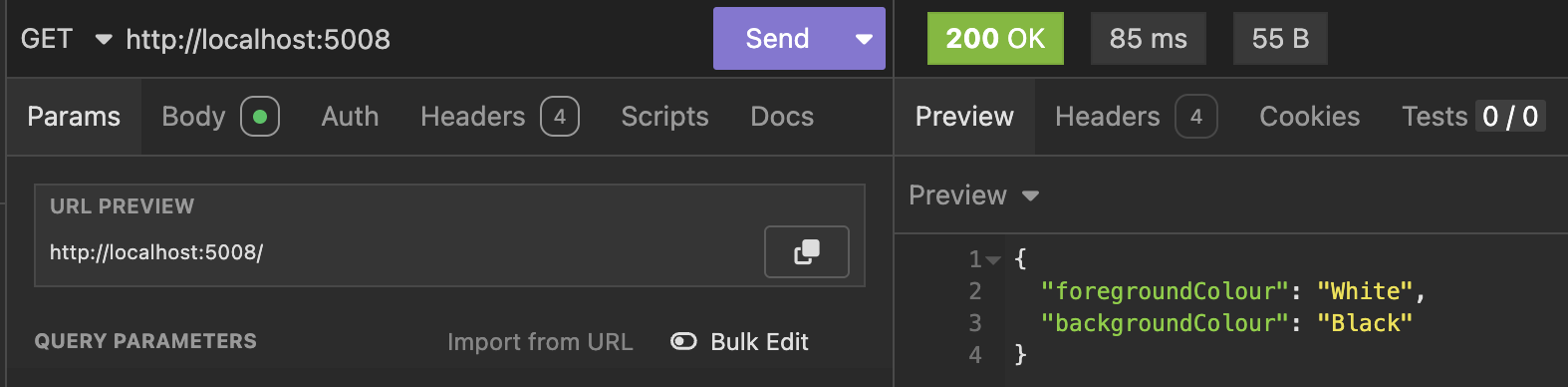

If we run this endpoint, we will see the following:

In the course of development, it is common practice to have different environments - typically Development, Staging and Production.

The file appsettings.json is always loaded first, and its settings are exposed to all the environments.

If we wanted the settings to be different for our Development environment, we would modify the appsettings.Development.json and in that file specify what we want to override.

For example, I want Yellow to be the foreground colour and Red to be the background color for my development environment.

Update the appsettings.Development.json as follows:

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "SystemSettings": {
    "ForegroundColour": "Yellow",
    "BackgroundColour": "Red"
  }
}

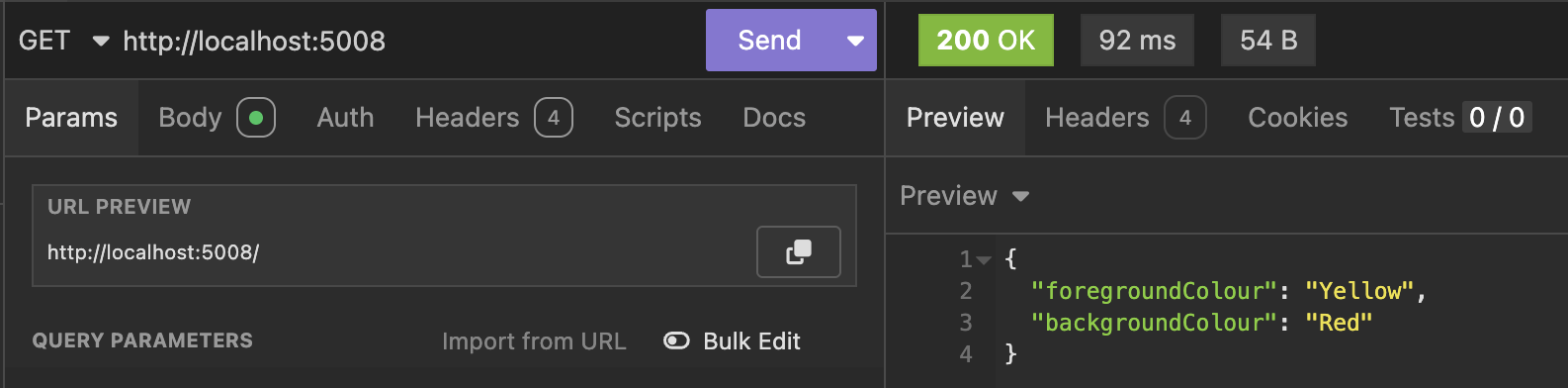

This will return the following:

It is important to get into the practice of only updating the appsettings.Development.json to only change the options you want to override.

In other words, if I only want to change the foreground colour, rather than do this:

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "SystemSettings": {
    "ForegroundColour": "Yellow",
    "BackgroundColour": "Black"
  }
}

I should do this:

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "SystemSettings": {
    "ForegroundColour": "Yellow"
  }
}

You can also use the configuration infrastructure to add your own json file to the configuration.

Let us imagine that the settings file was delivered through some other mechanism, such as being generated by tool, into a file - companysettings.json.

{
  "SystemSettings": {
    "ForegroundColour": "Orange",
    "BackgroundColour": "Green"
  }
}

We would load this as follows:

var builder = WebApplication.CreateBuilder(args);

// Load our company settings, that are mandatory
builder.Configuration.AddJsonFile("companysettings.json", optional: false);

// Configure options DI
builder.Services.AddOptions<SystemSettings>()
    .Bind(builder.Configuration.GetSection(nameof(SystemSettings)));

var app = builder.Build();

The parameter optional is used to control what happens if the file is missing. Here we are indicting it is mandatory.

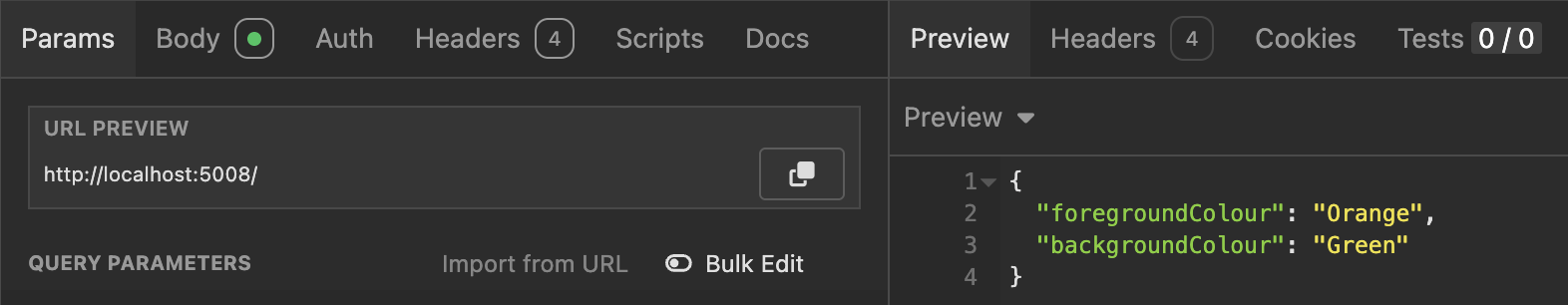

This will return the following:

If the file is not found, the application will throw an exception.

Unhandled exception. System.IO.FileNotFoundException: The configuration file 'companysettings.json' was not found and is not optional. The expected physical path was '/Users/rad/Projects/blog/BlogCode/ApplicationSettings/companysettings.json'.

You can make use of this information to solve a very common problem that affects a team of developer working on a common project that requires infrastructure such as database connection strings, that will differ from developer to developer depending on their machine setups and configurations..

Suppose, for this example, every developer on the project wanted to use their own custom colours.

We can utilize the information that it is possible to get the machine name at runtime using the Environment.MachineName property, and therefore craft the filename at runtime.

Our program will now look like this:

var builder = WebApplication.CreateBuilder(args);

// Load our company settings, that are mandatory
builder.Configuration.AddJsonFile("companysettings.json", optional: false);
// Load optional developer-specific settings
builder.Configuration.AddJsonFile($"appsettings.{Environment.MachineName}.json", optional: true);

// Configure options DI
builder.Services.AddOptions<SystemSettings>()
    .Bind(builder.Configuration.GetSection(nameof(SystemSettings)));

var app = builder.Build();

We have explicitly said that this file is optional, so a developer does not have to override the settings by creating a file .

We then create a file with the corresponding name.

Given my machine is named Ciara, I the settings file is called appsettings.Ciara.json.

It will look like this:

{
  "SystemSettings": {
    "ForegroundColour": "Mauve",
    "BackgroundColour": "Maroon"
  }
}

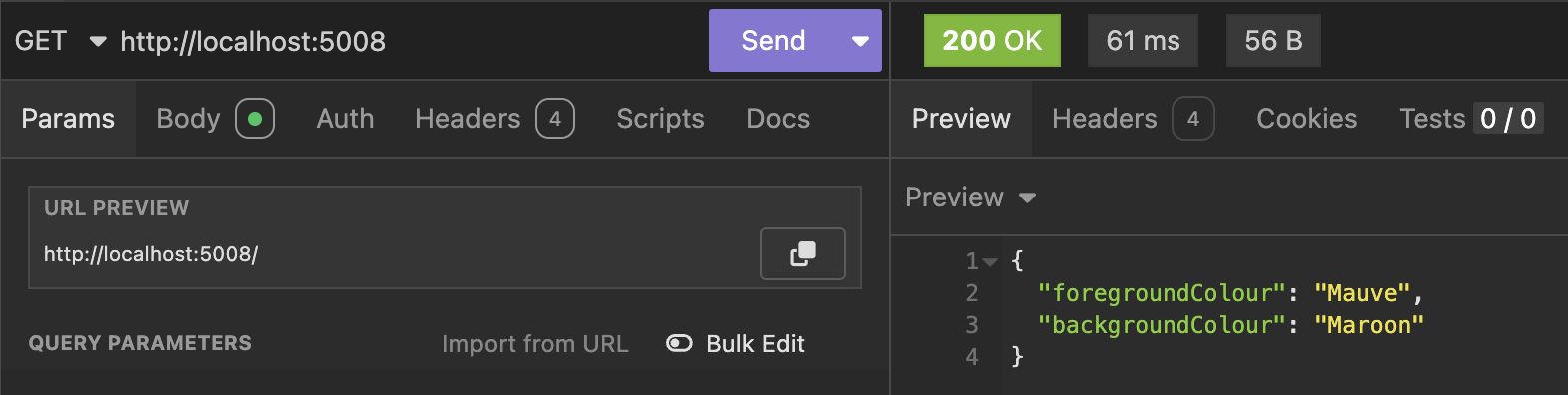

If we run this endpoint it will return the following:

In this way we can take advantage of the options pattern to handle very complex scenarios when it comes to overriding settings.

To ensure developer settings are not considered for enviroments such as Staging and Production, we can improve our code to explicly check for that:

if (builder.Environment.IsDevelopment())
{
    // Load optional developer-specific settings
    builder.Configuration.AddJsonFile($"appsettings.{Environment.MachineName}.json", optional: true);
}

TLDR

The .NET options pattern allows for overriding of options specified in a file that allows for considerable flexibility.

The code is in my GitHub.

Happy hacking!
