GuidV7 Considerations for SQL Server

In our previous post, “GuidV7 Considerations for Database Keys,” we looked at how GuidV7 generation for multiple values with the same timestamp presents a challenge: the generated values sort differently, affecting the ordering of clustered indexes.

In this post, we look at a different challenge revolving around how SQL Server sorts Guid values.

We will use the same type as before:

public sealed record Thing(Guid ID, string Caption);

We then have the following SQL Server table schema:

create table things
(
    id      uniqueidentifier not null
        constraint things_pk
            primary key,
    caption nvarchar(100)
);

We then generate some Guid values in v7 format, ensuring a unique timestamp.

using Dapper;
using Microsoft.Data.SqlClient;

const string connectionString =
    "data source=localhost;uid=sa;password=YourStrongPassword123;database=things;trustservercertificate=true";
var things = new List<Thing>();
for (var i = 0; i < 10; i++)
{
    things.Add(new Thing(Guid.CreateVersion7(), $"{i}"));
    Thread.Sleep(TimeSpan.FromMilliseconds(1));
}

foreach (var thing in things)
{
    Console.WriteLine($"ID: {thing.ID}; {thing.Caption}");

    using (var cn = new SqlConnection(connectionString))
    {
        cn.Execute("insert into things(id,caption) values (@ID,@Caption)", thing);
    }
}

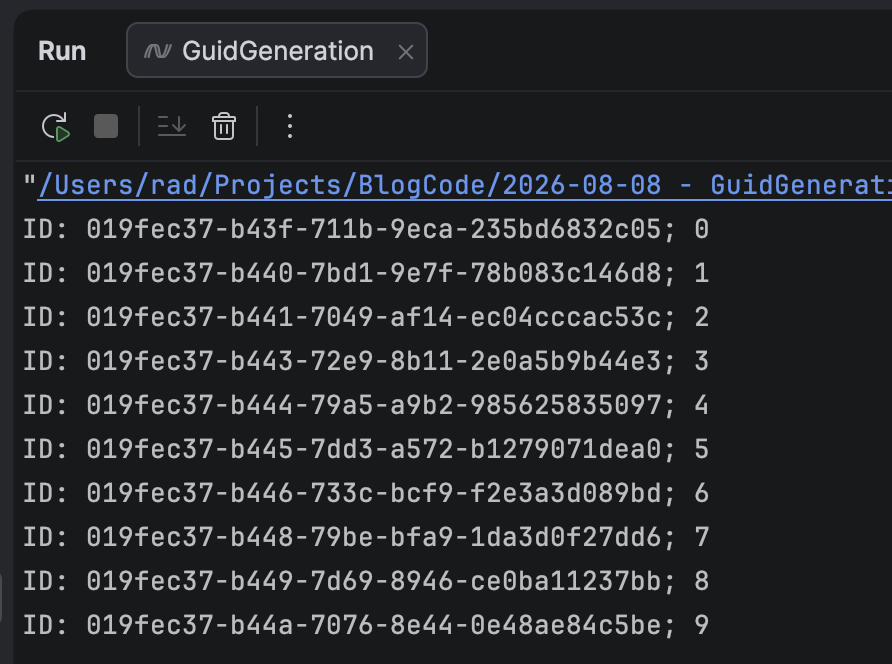

This will print something like this:

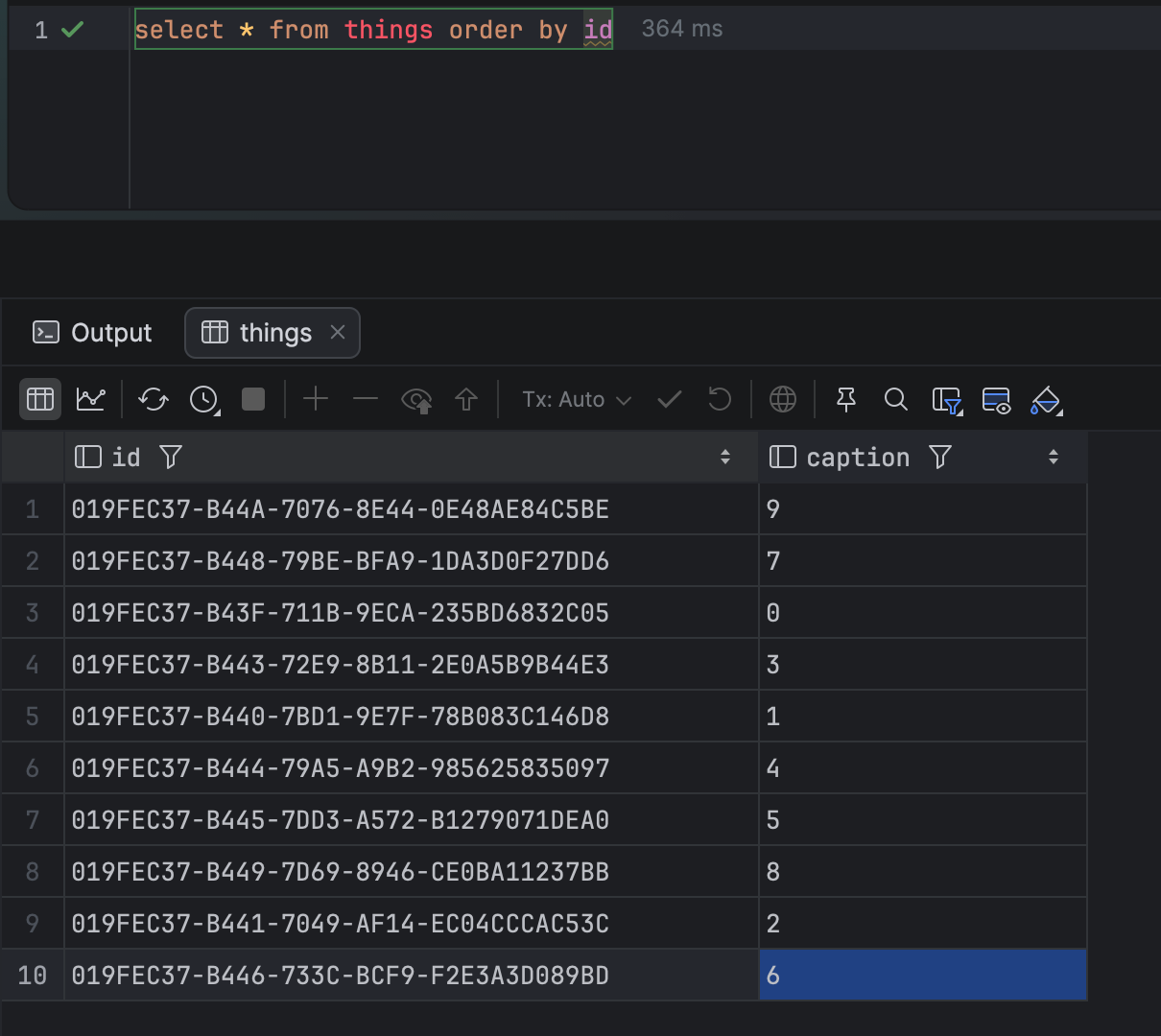

If we go to the database and order by ID …

We can see here that they are not ordered as we would expect.

We can verify that the Guid values should sort by creation order.

var list = new List<Guid>();
list.Add(Guid.Parse("019fec37-b43f-711b-9eca-235bd6832c05"));
list.Add(Guid.Parse("019fec37-b440-7bd1-9e7f-78b083c146d8"));
list.Add(Guid.Parse("019fec37-b441-7049-af14-ec04cccac53c"));
list.Add(Guid.Parse("019fec37-b443-72e9-8b11-2e0a5b9b44e3"));
list.Add(Guid.Parse("019fec37-b444-79a5-a9b2-985625835097"));
list.Add(Guid.Parse("019fec37-b445-7dd3-a572-b1279071dea0"));
list.Add(Guid.Parse("019fec37-b446-733c-bcf9-f2e3a3d089bd"));
list.Add(Guid.Parse("019fec37-b448-79be-bfa9-1da3d0f27dd6"));
list.Add(Guid.Parse("019fec37-b449-7d69-8946-ce0ba11237bb"));
list.Add(Guid.Parse("019fec37-b44a-7076-8e44-0e48ae84c5be"));
list.Sort();

list.ForEach(x => Console.WriteLine(x));

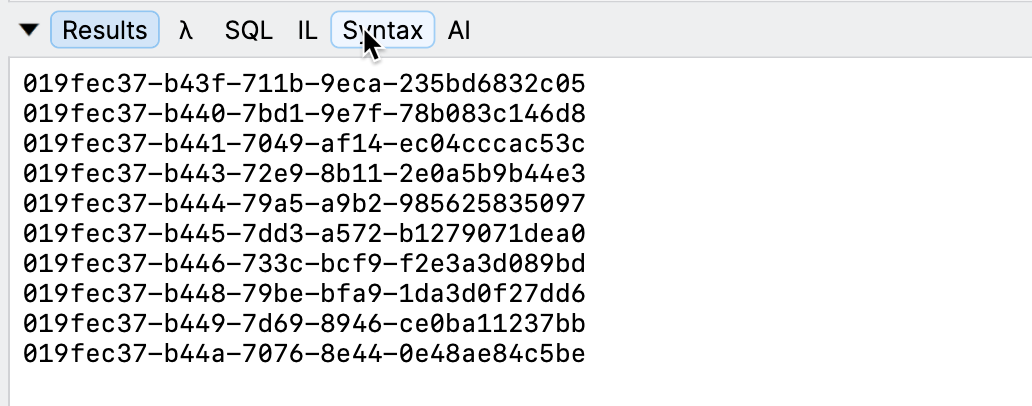

This should print the same sequence as creation:

The issue is around how Guid values are sorted by SQL Server - it does not use the algorithm for Guid v7.

This essentially means Guid.CreateVersion7() does not create values that SQL Server will correctly order for a clustered index.

TLDR

SQL Server does not sort Guid values using an algorithm congruent with v7.

The code is in my GitHub.

Happy hacking!
