This is Part 10 of a series on Designing, Building & Packaging A Scalable, Testable .NET Open Source Component.

In our last post, we implemented the IFileEncryptor interface into a concrete implementation - the AesFileEncryptor.

In this post, we will start working on the storage engines.

Having thought about it some more, here are the engines we will implement:

  1. In Memory - the files are stored in memory.
  2. File System - the files are stored on disk in a folder.
  3. SQL Server - the files are stored in a SQL Server database.
  4. PostgreSQL - the files are stored in a PostgreSQL database.
  5. Azure object storage.
  6. Amazon object storage.

We shall start with the In Memory storage.

The use case for this is for quick and dirty prototyping and testing, where you want to verify that your application works.

Off the top of my head, here are a few things to consider

  1. As it is in memory, we will need a data structure to store the ID and the data, probably a dictionary.
  2. The structure will need to be thread-safe.
  3. Again, as it is in memory, the data is lost when the host application stops.

We will begin by renaming the IFilePersistor interface to the IStorageEngine to reflect its intentions better.

The interface is now as follows:

/// <summary>
/// The contract for storage engine implementation
/// </summary>
public interface IStorageEngine
{
    /// <summary>
    /// Persist the file
    /// </summary>
    /// <param name="fileName"></param>
    /// <param name="extension"></param>
    /// <param name="data"></param>
    /// <param name="cancellationToken"></param>
    /// <returns></returns>
    Task<FileMetadata> StoreFileAsync(string fileName, string extension, Stream data,
        CancellationToken cancellationToken = default);

    /// <summary>
    /// Get the file metadata
    /// </summary>
    /// <param name="fileId"></param>
    /// <param name="cancellationToken"></param>
    /// <returns></returns>
    Task<FileMetadata> GetMetadataAsync(Guid fileId, CancellationToken cancellationToken = default);

    /// <summary>
    /// Get the file
    /// </summary>
    /// <param name="fileId"></param>
    /// <param name="cancellationToken"></param>
    /// <returns></returns>
    Task<Stream> GetFileAsync(Guid fileId, CancellationToken cancellationToken = default);

    /// <summary>
    /// Delete the file
    /// </summary>
    /// <param name="fileId"></param>
    /// <param name="cancellationToken"></param>
    /// <returns></returns>
    Task DeleteFileAsync(Guid fileId, CancellationToken cancellationToken = default);

    /// <summary>
    /// Check if the file exists
    /// </summary>
    /// <param name="fileId"></param>
    /// <param name="cancellationToken"></param>
    /// <returns></returns>
    Task<bool> FileExistsAsync(Guid fileId, CancellationToken cancellationToken = default);
}

Let us now implement it.

For storage, we will use a ConcurrentDictionary, and use the fileId as the key with the value being a Tuple of FileMetadata and MemoryStream.

Again, we are using Streams in case we need to deal with large files.

public class InMemoryStorageEngine : IStorageEngine
{
    // In-memory store for files and metadata
    private readonly ConcurrentDictionary<Guid, (FileMetadata MetaData, MemoryStream Stream)> _files;

    /// <summary>
    /// Constructor
    /// </summary>
    public InMemoryStorageEngine()
    {
        // Initialize the dictionary
        _files = new ConcurrentDictionary<Guid, (FileMetadata, MemoryStream)>();
    }
}

Now we can implement the members.

First is FileExistsAsync, which checks if the file exists.

/// <inheritdoc />
public Task<bool> FileExistsAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    // Check if key is in the dictionary
    return Task.FromResult(_files.ContainsKey(fileId));
}

Next is DeleteFileAsync, which deletes the file.

/// <inheritdoc />
public Task DeleteFileAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    // Remove file. Whether the ID is there or not
    _files.Remove(fileId, out _);
    return Task.CompletedTask;
}

Next is GetFileAsync, which gets the file as a Stream.

/// <inheritdoc />
public Task<Stream> GetFileAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    // Try to fetch the file
    if (_files.TryGetValue(fileId, out var file))
    {
        return Task.FromResult<Stream>(file.Stream);
    }

    throw new FileNotFoundException();
}

Next is GetMetadataAsync, which gets the FileMetadata.

/// <inheritdoc />
public Task<FileMetadata> GetMetadataAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    // Try to fetch the file metadata
    if (_files.TryGetValue(fileId, out var file))
    {
        return Task.FromResult(file.MetaData);
    }

    throw new FileNotFoundException();
}

Finally, StoreFileAsync, which persists the file.

While examining the interface, I realized that there is an improvement we can make.

Currently, the IFileStorageEngine StoreFileAsync() looks like this:

Task<FileMetadata> StoreFileAsync(string fileName, string extension, Stream data,
      CancellationToken cancellationToken = default);

Given that the UploadFileManager generates the FileMetadata, we can pass that directly to the storage engine - no need to pass the fileName and the extension, as they are already in the FileMetadata.

We therefore change the contract like so:

Task<FileMetadata> StoreFileAsync(FileMetadata metaData, Stream data,
      CancellationToken cancellationToken = default)

The StoreFileAsync now looks like this:

/// <inheritdoc />
public Task<FileMetadata> StoreFileAsync(FileMetadata metaData, Stream data,
    CancellationToken cancellationToken = default)
{
    // Copy to a memory stream for storage
    var memoryStream = new MemoryStream();
    data.CopyTo(memoryStream);
    memoryStream.Position = 0;

    // Store the stream
    _files[metaData.FileId] = (metaData, memoryStream);
    return Task.FromResult(metaData);
}

We can now write some tests to verify that our component works.

public class InMemoryStorageEngineTests
{
    private readonly UploadFileManager _manager;

    public InMemoryStorageEngineTests()
    {
        // Create a file compressor
        var compressor = new GZipCompressor();
        //
        // Create an encryptor
        //

        // Create Aes object
        var aes = Aes.Create();
        // Create the encryptor
        var encryptor = new AesFileEncryptor(aes.Key, aes.IV);

        // Create the storage engine
        var storageEngine = new InMemoryStorageEngine();

        // Create the time provider
        var timeProvider = new FakeTimeProvider();
        timeProvider.SetUtcNow(new DateTimeOffset(2025, 1, 1, 0, 0, 0, TimeSpan.Zero));

        // Create the file manager
        _manager = new UploadFileManager(storageEngine, encryptor, compressor, timeProvider);
    }

    private static MemoryStream GetFile()
    {
        var faker = new Faker();
        var dataToStore = faker.Lorem.Sentences(20);
        var dataToStoreStream = new MemoryStream(Encoding.UTF8.GetBytes(dataToStore));
        return dataToStoreStream;
    }

    private async Task<FileMetadata> Upload(MemoryStream data)
    {
        return await _manager.UploadFileAsync("Test.txt", ".txt", data, CancellationToken.None);
    }

    [Fact]
    public async Task Upload_And_Download_Succeeds()
    {
        // Get the data
        var data = GetFile();
        // Upload a file
        var uploadMetadata = await Upload(data);
        // Check the metadata
        uploadMetadata.Should().NotBeNull();
        uploadMetadata.FileId.Should().NotBeEmpty();
        // Download the file
        var download = await _manager.DownloadFileAsync(uploadMetadata.FileId);
        download.GetBytes().Should().BeEquivalentTo(data.GetBytes());
    }

    [Fact]
    public async Task File_Exists_Fails_If_ID_Doesnt_Exist()
    {
        // Check if the file exists
        var result = await _manager.FileExistsAsync(Guid.Empty);
        result.Should().BeFalse();
    }

    [Fact]
    public async Task File_Exists_Fails_If_ID_Exists()
    {
        // Get the data
        var data = GetFile();
        // Upload a file
        var uploadMetadata = await Upload(data);
        // Check if the file exists by ID
        var result = await _manager.FileExistsAsync(uploadMetadata.FileId);
        result.Should().BeTrue();
    }

    [Fact]
    public async Task File_Delete_Succeeds()
    {
        // Get the data
        var data = GetFile();
        // Upload a file
        var uploadMetadata = await Upload(data);
        // Check if the file exists
        var result = await _manager.FileExistsAsync(uploadMetadata.FileId);
        result.Should().BeTrue();
        // Delete the file
        await _manager.DeleteFileAsync(uploadMetadata.FileId);
        // Check again if the file exists
        result = await _manager.FileExistsAsync(uploadMetadata.FileId);
        result.Should().BeFalse();
    }

    [Fact]
    public async Task File_GetMetadata_Succeeds()
    {
        // Get the data
        var data = GetFile();
        // Upload a file
        var uploadMetadata = await Upload(data);
        // Get the metadata from the ID
        var storedMetadata = await _manager.FetchMetadataAsync(uploadMetadata.FileId);
        storedMetadata.Should().NotBeNull();
        storedMetadata.Should().Be(uploadMetadata);
    }

    [Fact]
    public async Task File_GetMetadata_Fails_If_ID_Doesnt_Exist()
    {
        // Fetch metadata for non-existent ID
        var ex = await Record.ExceptionAsync(() => _manager.FetchMetadataAsync(Guid.Empty));
        ex.Should().BeOfType<FileNotFoundException>();
    }

    [Fact]
    public async Task File_Delete_Fails_If_ID_Doesnt_Exist()
    {
        // Delete a non-existent file id
        var ex = await Record.ExceptionAsync(() => _manager.DeleteFileAsync(Guid.Empty));
        ex.Should().BeOfType<FileNotFoundException>();
    }
}

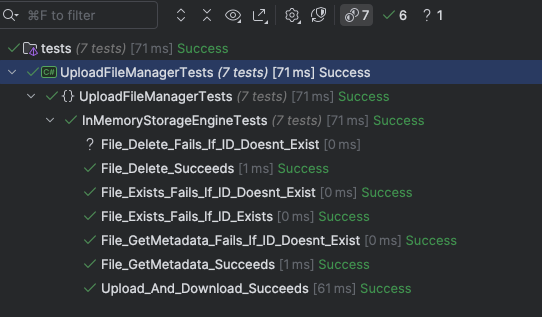

Our tests should pass successfully.

InMemoryTests

With that, we have a working component capable of receiving, compressing, decrypting, and storing files (in memory), as well as retrieving them, retrieving their metadata, checking whether they exist, and deleting them.

In our next post, we will implement the SQL Server storage engine.

TLDR

In this post, we have implemented a working In-Memory storage engine, the InMemoryStorageEngine

The code is in my GitHub.

Happy hacking
